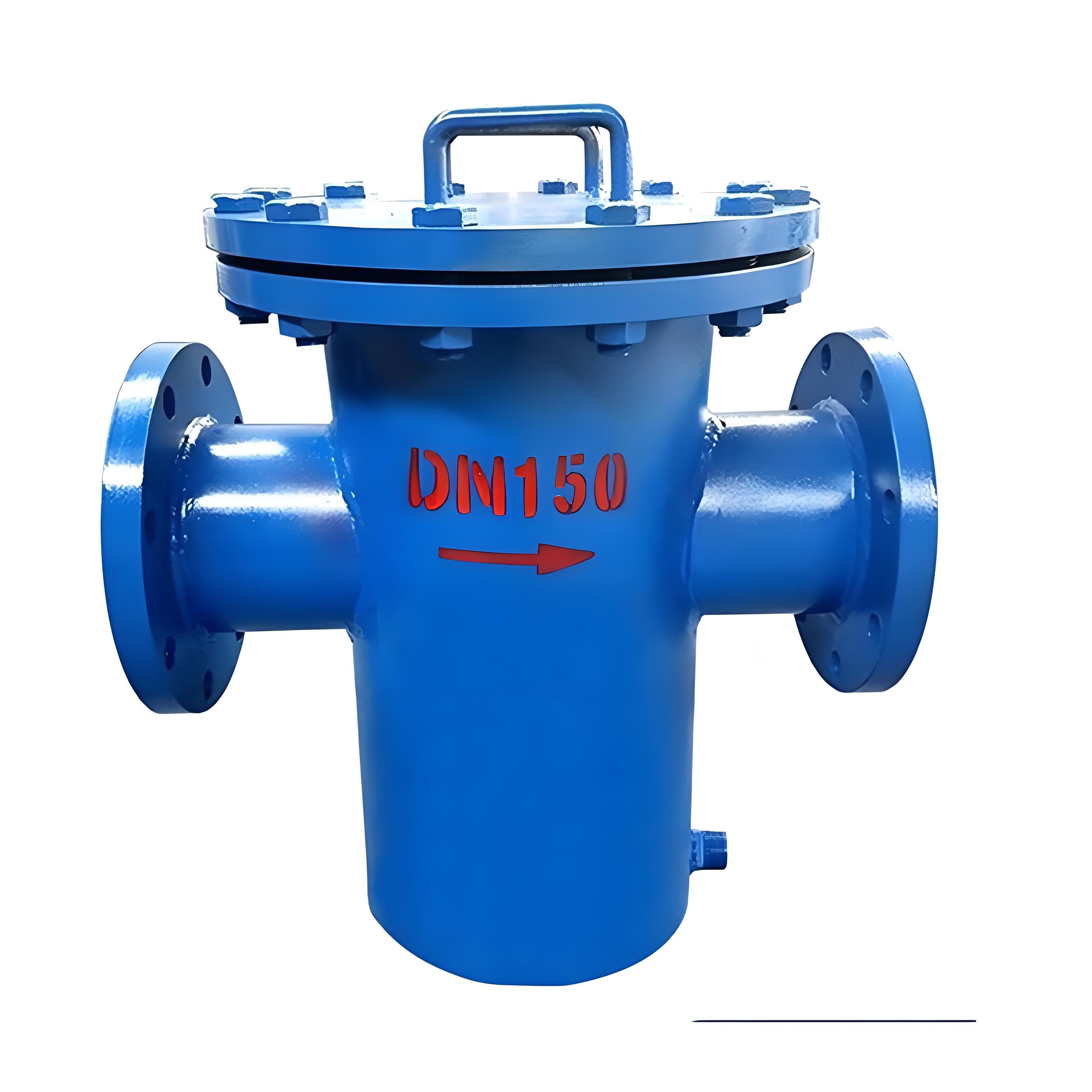

TS Basket Filters: Revolutionizing Liquid Filtration in Various Industries
TS basket filters are mostly used in pipelines to
Filter out large particles of impurities that fall from them.
Introduction to TS Basket Filters and Their Versatility
In the vast landscape of
industrial equipment, TS basket filters have emerged as a cornerstone for maintaining the purity and efficiency of liquid processes. These filters are designed to intercept and retain large particles of impurities that can potentially damage critical equipment such as pumps, nozzles, and valves. Their robust construction and ease of maintenance make them indispensable in a wide range of industries, from petrochemicals to food processing. By protecting key components and ensuring the smooth flow of clean fluids, TS basket filters contribute significantly to operational efficiency and cost savings.

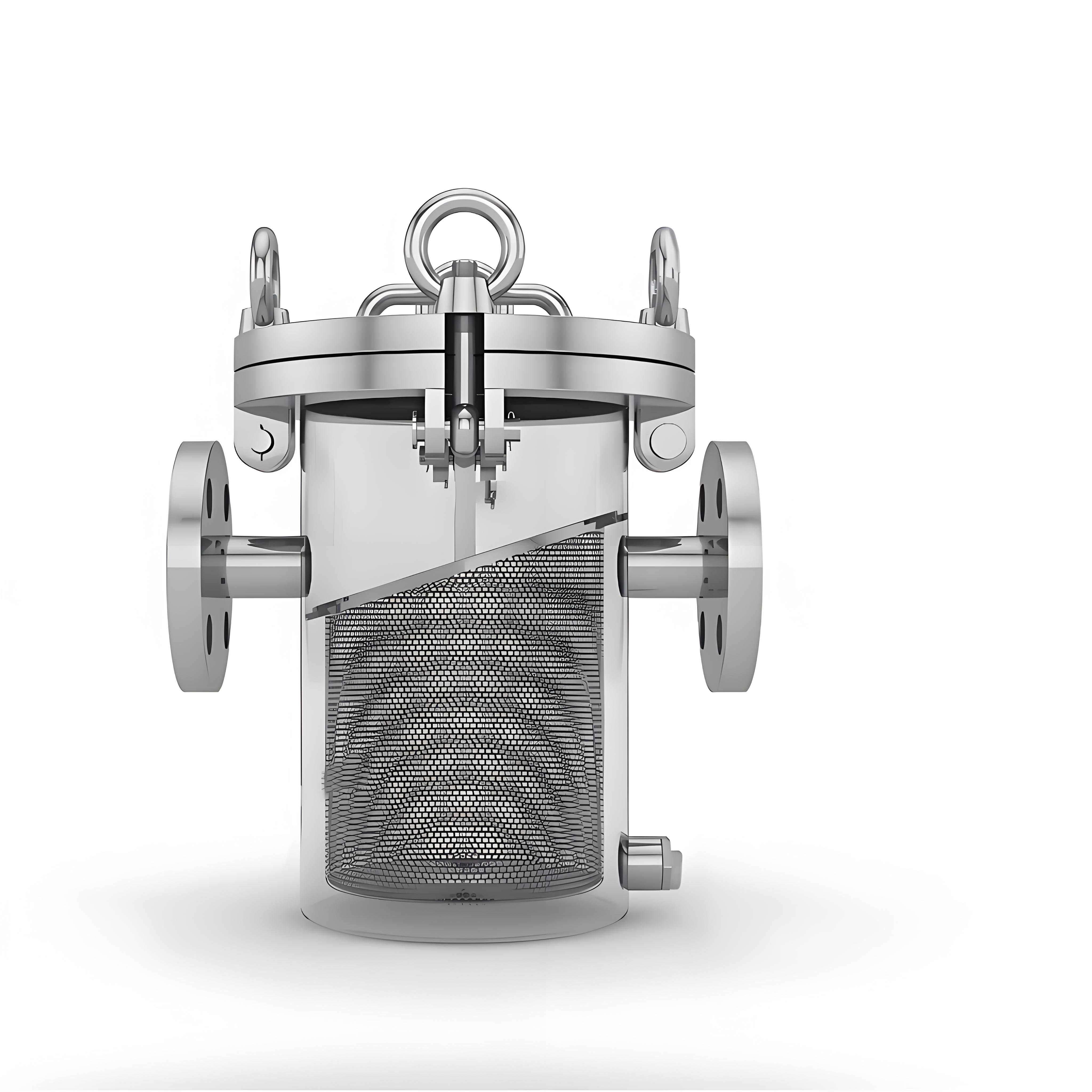

The core components of a TS basket filter include a pipe, a main pipe, a filter basket, a flange, a flange cover, and fasteners. This modular design allows for easy assembly and disassembly, facilitating regular maintenance and cleaning. When in operation, the liquid flows through the main pipe into the filter basket, where solid impurities are trapped. The filtered fluid then passes through the basket and exits the system via the filter outlet. This process ensures that only clean, particle-free liquid reaches downstream equipment, thereby extending its lifespan and reducing the risk of downtime.
Comprehensive Scope of Application Across Diverse Industries
The versatility of TS basket filters is evident in their wide scope of application across various industries. In the petrochemical sector, they are essential for filtering wax, coal distillates, and asphalt, ensuring that these substances meet the required purity standards before further processing. In the fine chemical industry, they play a crucial role in the production of inks, coatings, adhesives, and rubbers, preventing contamination that could compromise product quality.
The food processing industry also benefits greatly from TS basket filters. They are used to filter chocolate, candy, and juices, ensuring that consumers receive safe, high-quality products. Similarly, in the medical and environmental protection fields, these filters help maintain the purity of coolants, polymers, and other essential fluids. Their ability to handle a diverse range of liquids makes TS basket filters an indispensable tool in maintaining operational efficiency and product quality across multiple sectors.
Distinctive Product Features That Enhance Performance
TS basket filters are distinguished by a range of features that enhance their performance and reliability. One key aspect is the use of composite filters or punching plates to create the filter element. This design eliminates the need for consumables, reducing operational costs and simplifying maintenance. Additionally, the filters provide critical safety protection for pumps and valves, preventing damage caused by particle contamination.

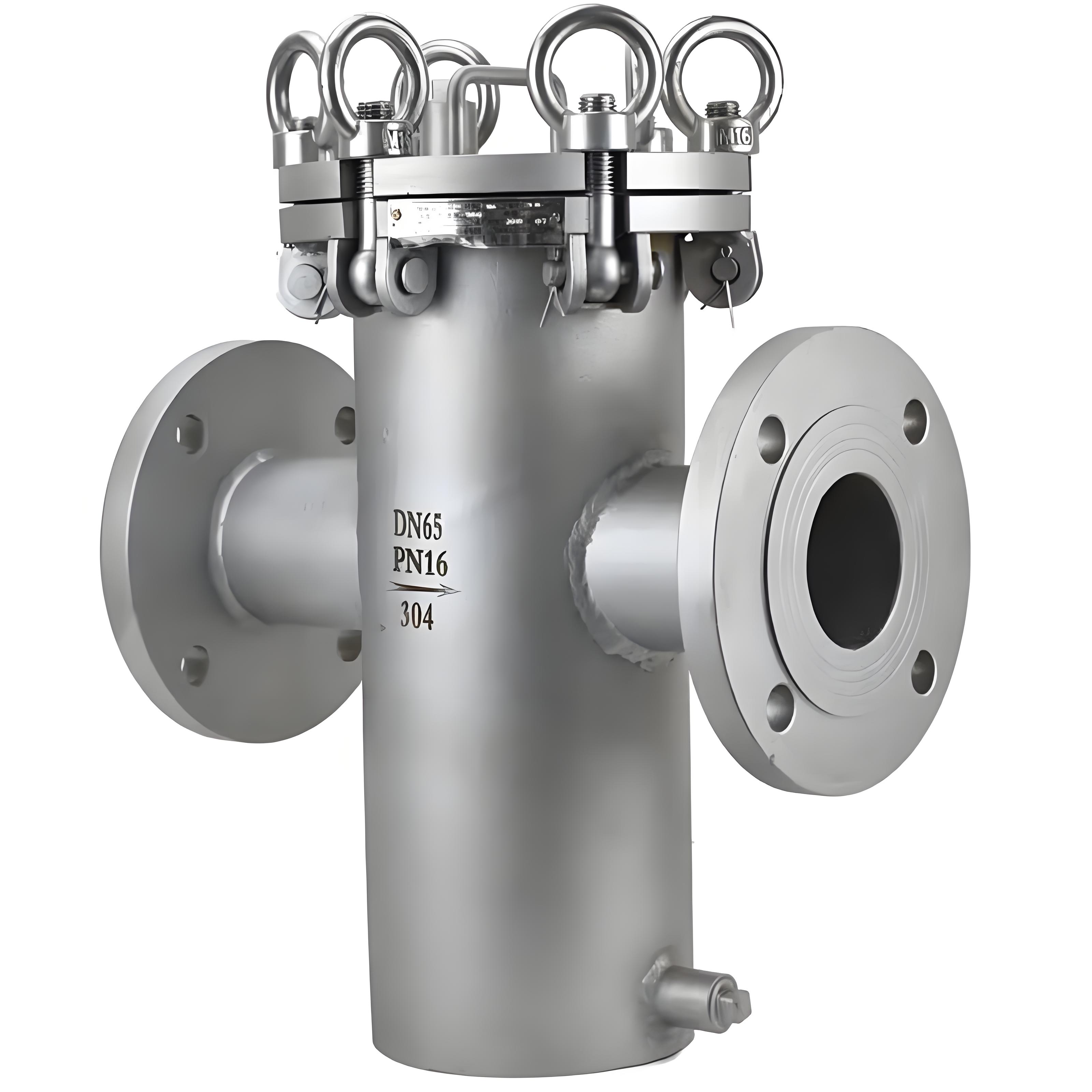

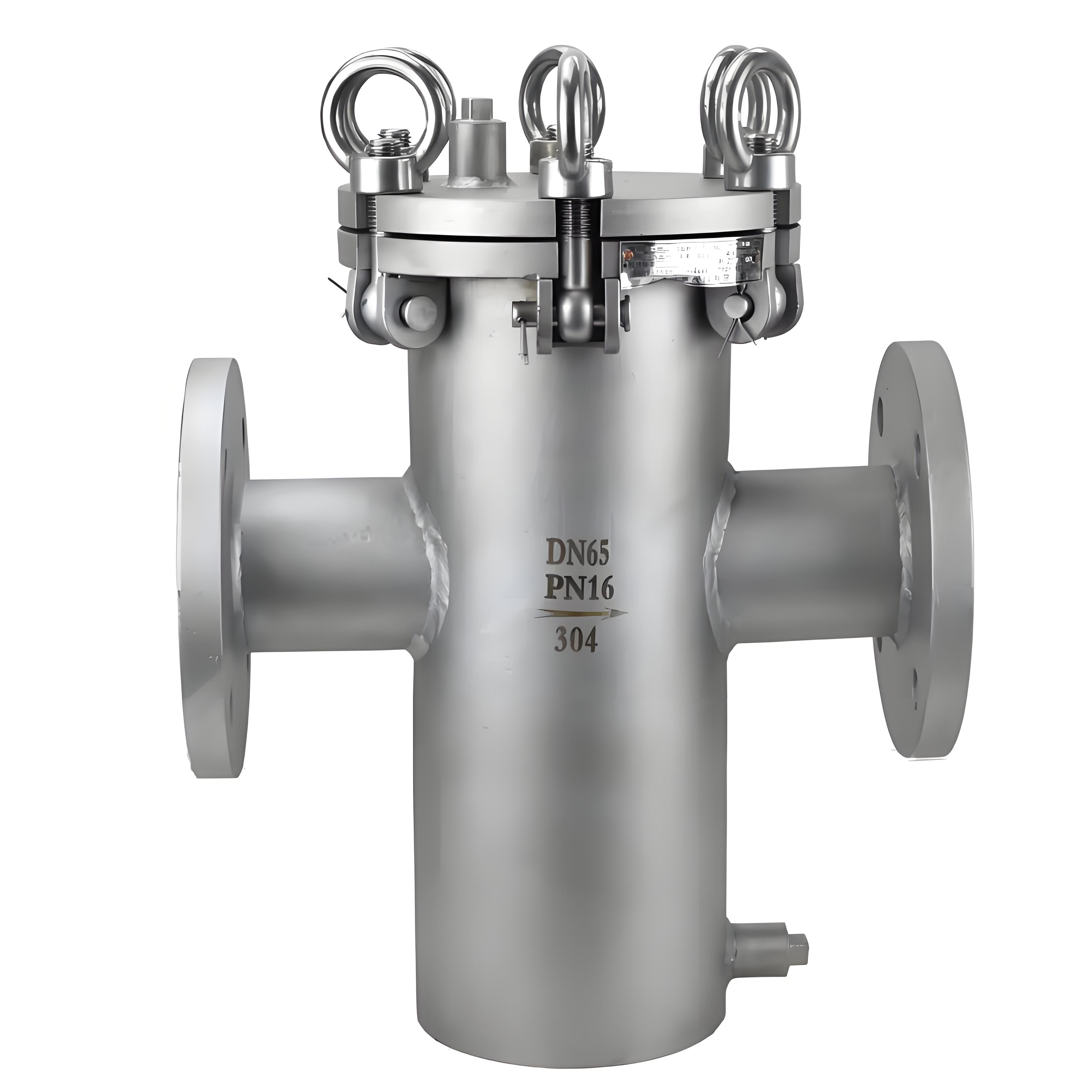

As pre-filters, TS basket filters are highly effective at intercepting large particles of impurities, reducing the burden on downstream filtration systems. Their filtration accuracy, typically above 25 micrometers, ensures that only clean fluid reaches sensitive equipment. Furthermore, the filters offer flexibility in material selection, with options including
stainless steel 304, 316L, and carbon steel, allowing them to be tailored to specific operational requirements and environmental conditions.
Technical Specifications and Customization Options

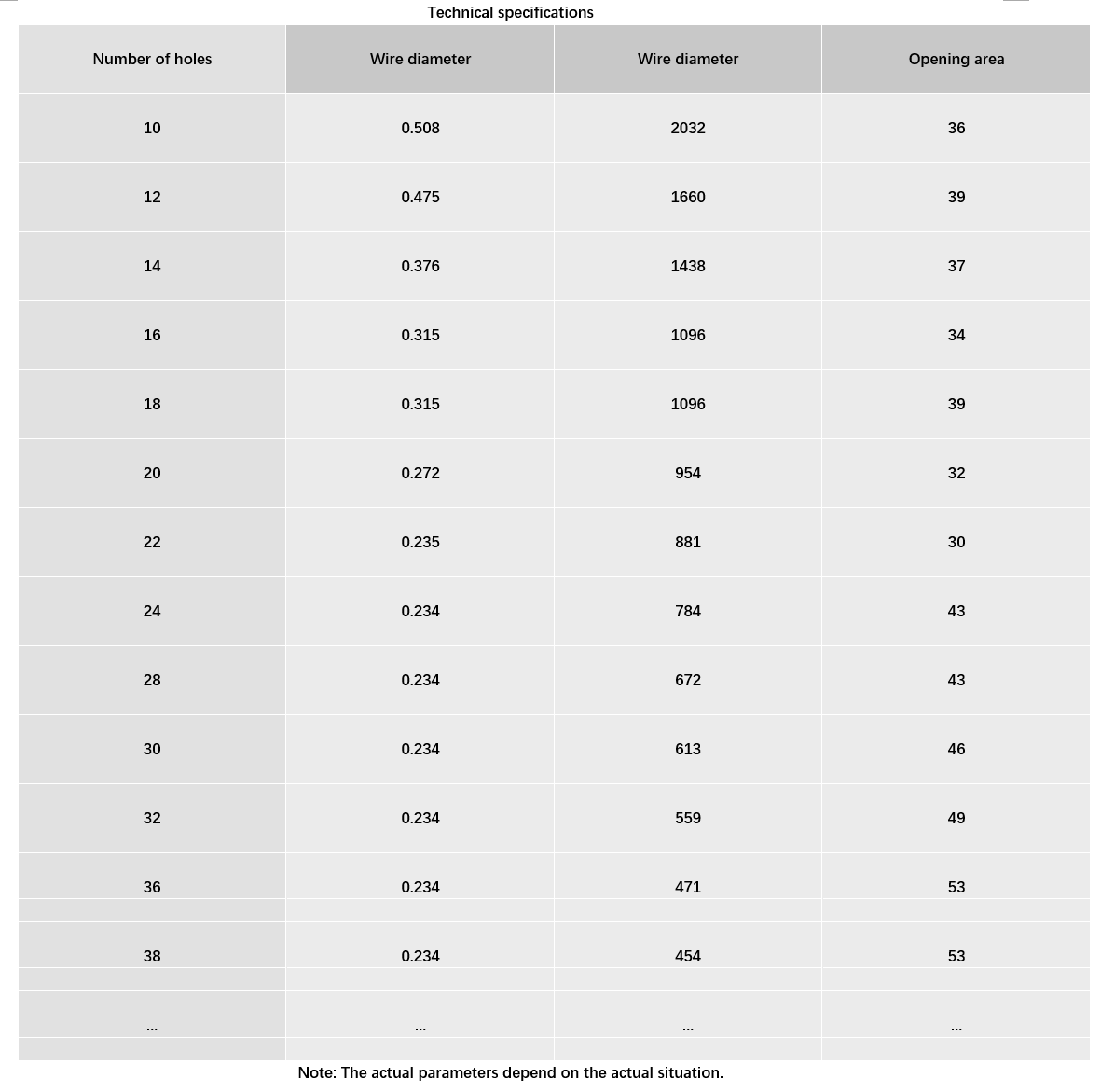

The technical specifications of TS basket filters are meticulously designed to meet the diverse needs of various industries. The number of holes, wire diameter, interceptable particle size, and opening area are all carefully calculated to optimize filtration efficiency and capacity. For example, a filter with 10 holes and a wire diameter of 0.508 millimeters can intercept particles up to 2032 micrometers in size, with an opening area of 36 square millimeters.
As the number of holes increases, the wire diameter decreases, allowing for finer filtration while maintaining an adequate opening area to ensure flow rate. This balance between filtration accuracy and flow capacity is crucial for maintaining operational efficiency. Additionally, TS basket filters can be customized to meet specific requirements, such as material selection, filtration accuracy, and pressure ratings, ensuring that they are tailored to the unique needs of each application.
Ease of Maintenance and Cost-Effectiveness
The ease of maintenance of TS basket filters is a significant advantage that contributes to their widespread adoption. When cleaning is required, operators simply unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and clean the filter basket. This straightforward process can be completed quickly and efficiently, minimizing downtime and operational disruptions.
Moreover, the elimination of consumables further reduces maintenance costs and simplifies the maintenance process. The durability of TS basket filters ensures that they can withstand the rigors of industrial use, providing long-term performance and reliability. Their cost-effectiveness is further enhanced by the ability to customize the filters to specific operational requirements, optimizing their performance and reducing unnecessary expenditures.
Conclusion: The Future of Liquid Filtration with TS Basket Filters
In conclusion, TS basket filters have emerged as a leading solution for liquid filtration in various industries. Their robust construction, ease of maintenance, and versatility in application make them indispensable for maintaining the purity and efficiency of liquid processes. By protecting critical equipment, reducing downtime, and optimizing operational efficiency, these filters contribute significantly to the success of industrial operations.
As industries continue to evolve and face new challenges, the need for reliable, cost-effective filtration solutions will increase. TS basket filters, with their distinctive features and customization options, are well-positioned to meet these demands. By continuing to innovate and improve their products, manufacturers of TS basket filters will play a crucial role in shaping the future of liquid filtration in various industries.
As we look ahead, it is clear that TS basket filters will remain a cornerstone of industrial operations, ensuring the purity and efficiency of liquid processes. Their ability to adapt to diverse applications and meet specific operational requirements makes them an invaluable asset for businesses seeking to optimize their performance and reduce costs. With continued advancements in technology and material science, we can expect to see even greater improvements in the design and functionality of TS basket filters, further enhancing their role in the industrial landscape.
