Bag Filters: Essential industrial Filtration Equipment for Air and Liquid Purification
Introduction to Bag Filters
Bag filters have emerged as a staple in industrial filtration, playing a crucial role in both air and liquid purification processes. These versatile devices are designed to capture and eliminate solid particles or impurities suspended within a fluid, utilizing high-performance
Filter media. Their widespread adoption across various industries underscores their effectiveness and reliability in maintaining fluid cleanliness and quality.
The fundamental principle behind bag filters involves the use of a filter bag, typically crafted from robust fiber materials, which serves as the heart of the filtration system. These bags are available in diverse filtration precisions, catering to specific needs and applications. By selecting the appropriate filtration precision, industries can ensure that their fluids meet the required standards for purity and cleanliness.
Understanding the components of a Bag Filter is essential to appreciating its functionality and versatility.
Filter Bag: As mentioned, the filter bag is the most critical component, responsible for trapping impurities. Made from durable fibers, these bags can withstand the rigors of industrial use while maintaining consistent filtration performance.
Frame or Shell: Supporting and securing the filter bag is a
metal frame or shell, often constructed from robust materials to withstand the pressure and temperatures associated with industrial applications.
Sealing System: Ensuring the integrity of the filtration process, sealing systems using rubber gaskets or other sealing materials prevent fluid leakage, maintaining the efficiency and effectiveness of the bag filter.
Inlet and Outlet Ports: These ports facilitate the smooth flow of fluid into and out of the bag filter. The inlet port allows the fluid to enter, while the outlet port discharges the filtered fluid.
The shell of a bag filter is another critical aspect, with material selection playing a pivotal role in its durability and compatibility with different fluids.
Manufacturers offer a range of materials for bag filter shells, including high-quality
stainless steel grades such as SS304 (06Cr19Ni10) and SS316L (022Cr17Ni12Mo2). These stainless steel grades provide excellent corrosion resistance and are suitable for a wide range of applications. Carbon steel (16MnR) is another option, offering cost-effectiveness and strength. For more specialized applications, materials like Hastelloy C276 are available, known for their exceptional resistance to harsh chemicals and high temperatures.
The design, manufacture, and acceptance of bag filters, particularly those with steel shells, often refer to the steel
pressure vessel standard GB150. This ensures that the bag filters meet stringent safety and performance requirements, contributing to their reliability and longevity.
Classification of Bag Filters
Bag filters come in various configurations, each tailored to specific needs and operational requirements.
Quick-Switch Bag Filter: These filters are designed for ease of maintenance, allowing for quick and effortless replacement of the filter bag without disrupting the filtration process.

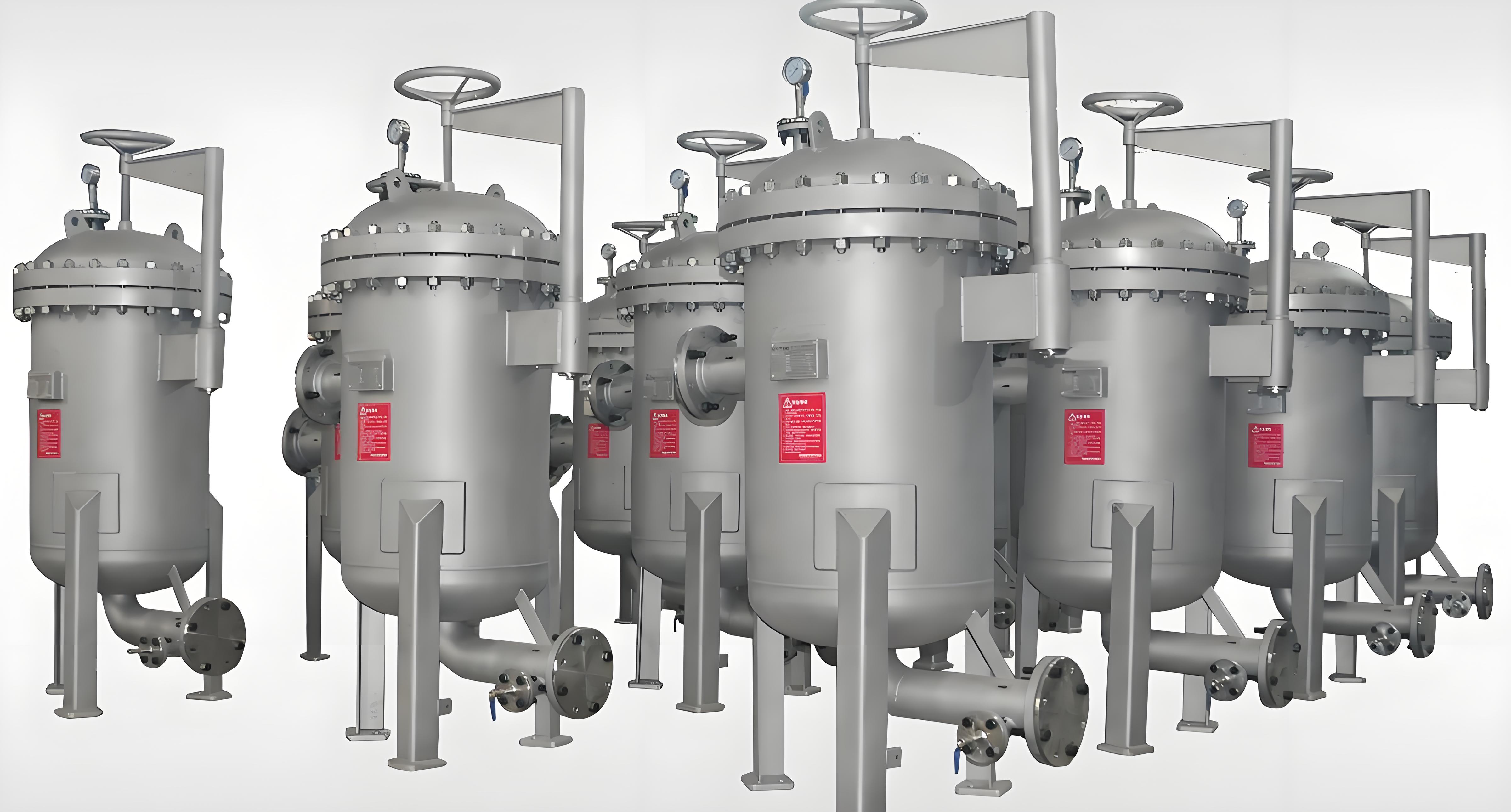

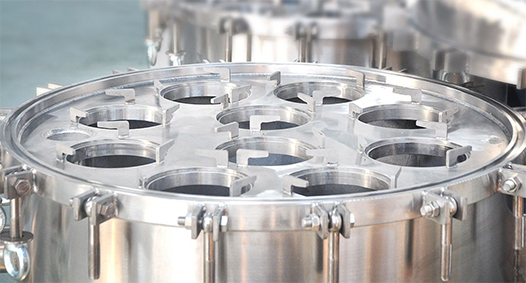

Multi-Bag Filter: As the name suggests, multi-bag filters house multiple filter bags, offering increased filtration capacity and efficiency. They are ideal for applications requiring high flow rates or extensive filtration.

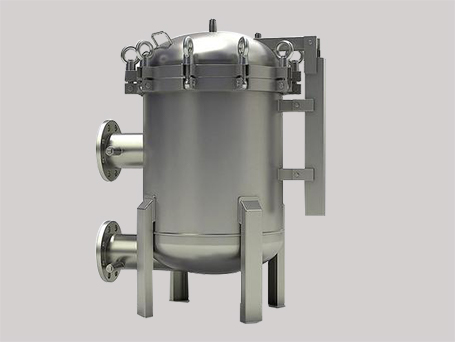

Top-Entry Bag Filter: Top-entry designs allow for easy access to the filter bag from the top, facilitating maintenance and bag replacement without the need to disconnect piping or drain the system.
Clamp-Type Bag Filter: Clamp-type bag filters utilize clamping mechanisms to secure the filter bag, providing a secure and leak-proof seal while allowing for straightforward bag removal and installation.
Working Principle of Bag Filters
The working principle of bag filters is straightforward yet highly effective, involving a series of steps to ensure fluid purity.
Fluid Entry: The fluid, whether
gas or liquid, enters the bag filter through the inlet port.
Filtration Process: As the fluid passes through the filter bag, the media within the bag captures solid particles and impurities. The clean fluid then continues through the bag and exits the filter through the outlet port.
Accumulation of Impurities: Over time, the filter bag accumulates impurities, reducing its filtration efficiency. Regular monitoring and cleaning or replacement of the filter bag are necessary to maintain optimal performance.
Maintenance: Regular maintenance, including cleaning or replacing the filter bag, ensures the continued effectiveness and longevity of the bag filter.
Applications of Bag Filters Across Industries
Bag filters find widespread application across numerous industries, underscoring their versatility and importance in maintaining fluid cleanliness.
In air filtration, bag filters are crucial in air purification systems, removing pollutants such as
dust and particulate matter. This is particularly vital in environments where air quality is critical, such as hospitals, cleanrooms, and industrial settings where dust-free conditions are essential.
In liquid filtration, bag filters play a pivotal role in industries like chemicals, food and beverage, pharmaceuticals, and papermaking. They filter liquid media, removing solid impurities that could compromise product quality or process efficiency. From ensuring the purity of pharmaceutical ingredients to maintaining the clarity and taste of beverages, bag filters are indispensable in maintaining high standards of fluid cleanliness and quality.
The adaptability and effectiveness of bag filters make them a cornerstone of industrial filtration, contributing to the cleanliness, safety, and efficiency of countless applications worldwide.
