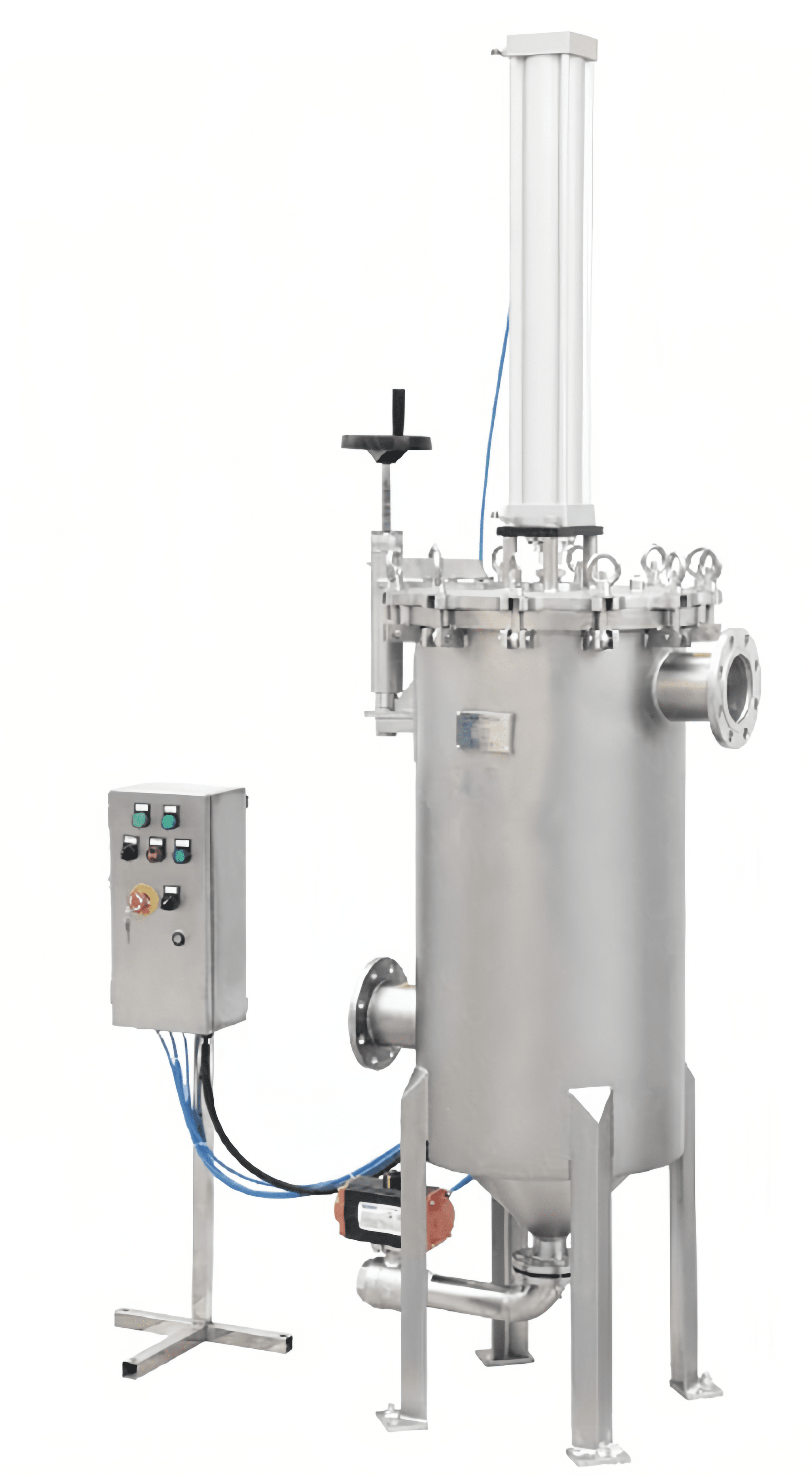

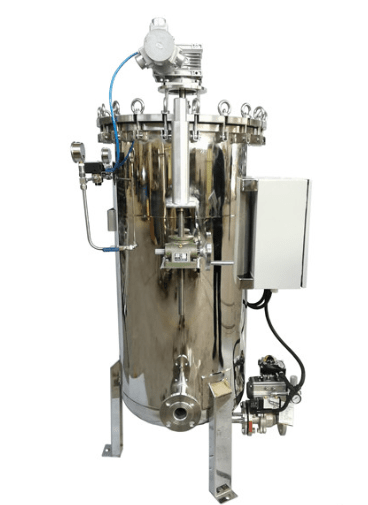

Scraper self cleaning filter is a highly efficient
filtering equipment that automatically removes debris and impurities from the fluid media, ensuring uninterrupted and reliable operation.This
fully automatic system eliminates the need for manual intervention, ensuring continuous and uninterrupted operation. Featuring advanced
automatic equipment, the Scraper Self Cleaning Filter automatically removes debris, particles, and contaminants from the fluid, maintaining optimal flow rates and purity levels. Its robust design and intelligent self cleaning mechanism make it an ideal choice for maintaining the integrity and efficiency of your fluid systems.
Product Overview
Scraper self cleaning filters are divided into two categories according to the position of the scraper: internal scraper filters and external scraper filters.
The scraper filter uses a 360° rotating scraper and a cylinder lifting scraper to automatically clean impurities and dirt online, without manual cleaning, and maintains continuous operation. It is mainly used for filtering low, medium and high viscosity liquids. It is a self cleaning scraper filter equipment with excellent performance.
Scope of application: Industry: petrochemical, fine chemicals, food processing, medicine and environmental protection. Typical liquids: wax, coal distillate, asphalt, ink, coating, adhesive, rubber, glue, chocolate, candy, juice, coolant, polymer, etc.
Has the following characteristics:
1. No disposable filter consumables are generated, saving consumables costs and environmental protection treatment costs
2. Sewage has high impurity concentration and can be recycled, avoiding high material loss
3. Standard equipped with internationally renowned brand reduction motor, high reliability and long service life
4. Fully automatic closed filtration, no leakage of harmful substances, safe, green and efficient
5. Equipped with multiple types of microporous filter elements to meet various filtration conditions
6. Various module combinations and automatic optional modes to meet the application requirements of various filters
7. Small pressure loss, stable flow, low energy consumption control
8. Self developed spring scraper assembly, no secondary pollution, tightly fit the filter element
9. Automatic operation, 24-hour continuous online filtration, saving labor costs

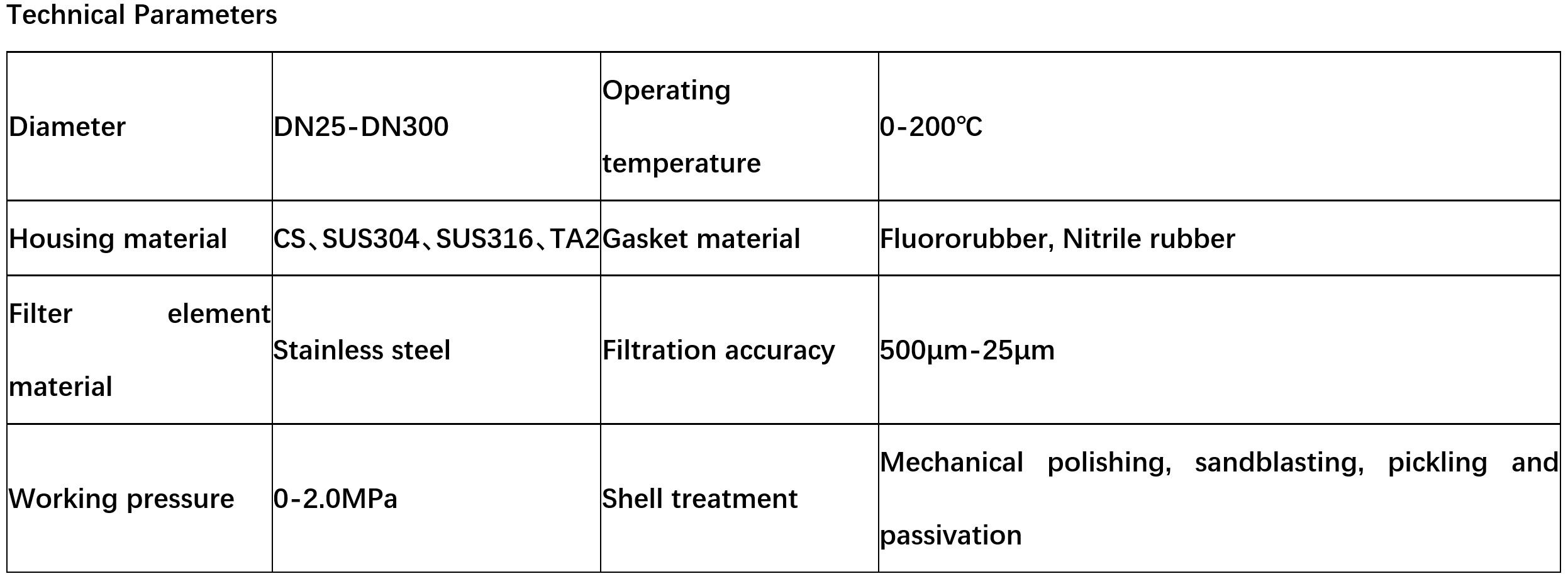

Technical parameters
Diameter DN25-DN300 Working temperature 0-200℃
Shell material CS, SUS304, SUS316, TA2 Gasket material Fluororubber, Nitrile rubber
Working pressure 0-2.0MPa Shell treatment Mechanical polishing, sandblasting, pickling passivation

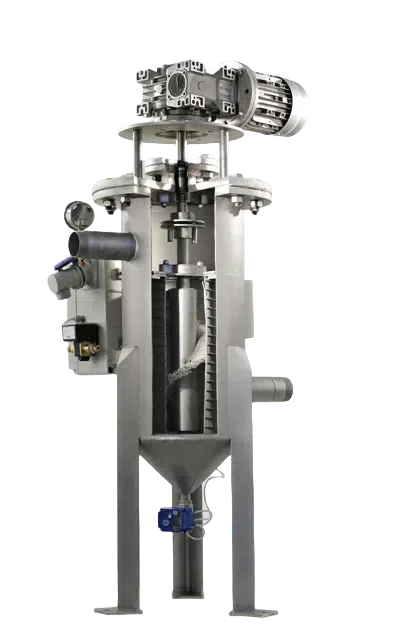

Working principle:
The liquid enters from the shell inlet, the viscous material medium passes through the wedge-shaped filter screen, the coarse particles are intercepted by the filter screen, and the high-concentration liquid enters the next production link after filtration. The impurities are intercepted on the inner surface of the filter screen, slowly accumulate, and part of them settle at the bottom of the equipment. The differential pressure sensor detects the differential pressure value inside and outside the filter element, and the control module starts the established cleaning program. The scraper cleans the medium attached to the inner and outer walls of the filter screen, and discharges the shell with the concentrated liquid at the bottom to restore the normal filtering state.
