This filter is ideal for a wide range of applications, including:
1. Industrial Processes: Cooling water systems, lubrication systems, process water treatment, and wastewater treatment.
2. Commercial Facilities: HVAC systems, swimming pools, spas, and irrigation systems.
3. Municipal Services: Water supply systems, wastewater treatment plants, and stormwater management.
Product Description

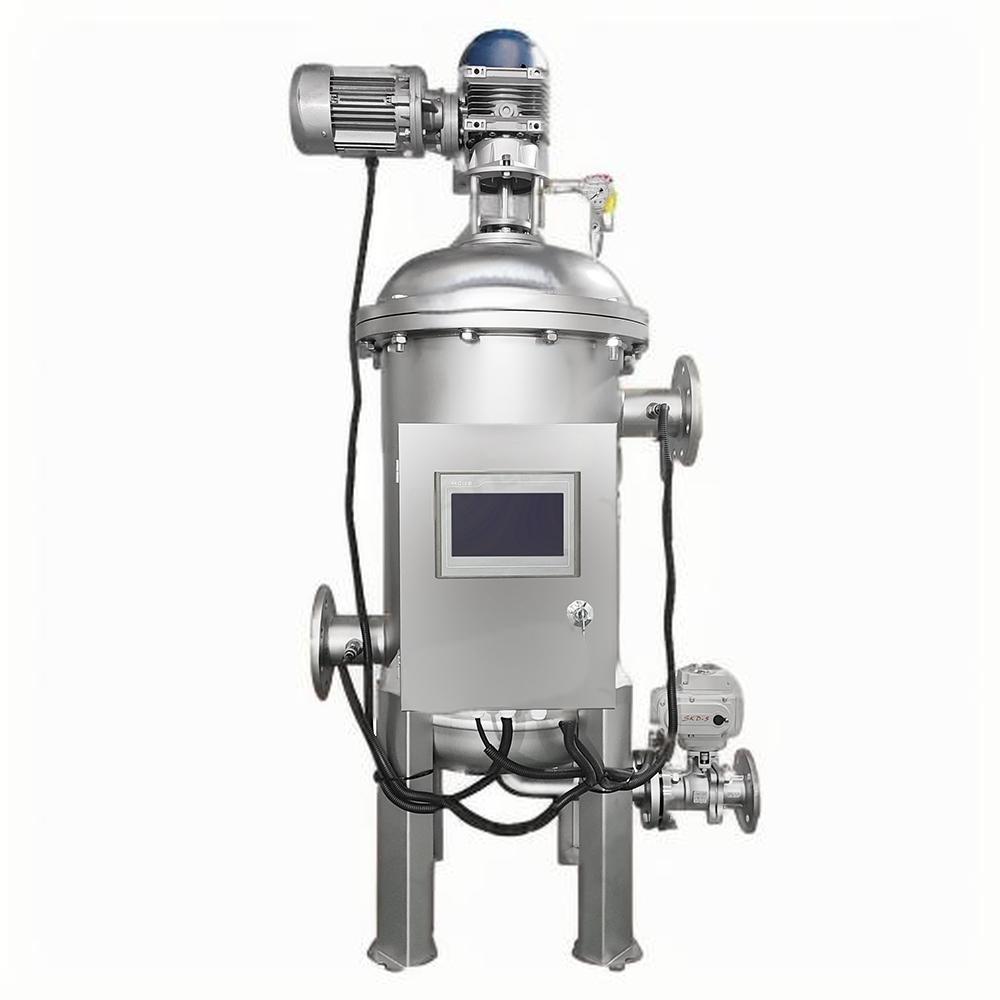

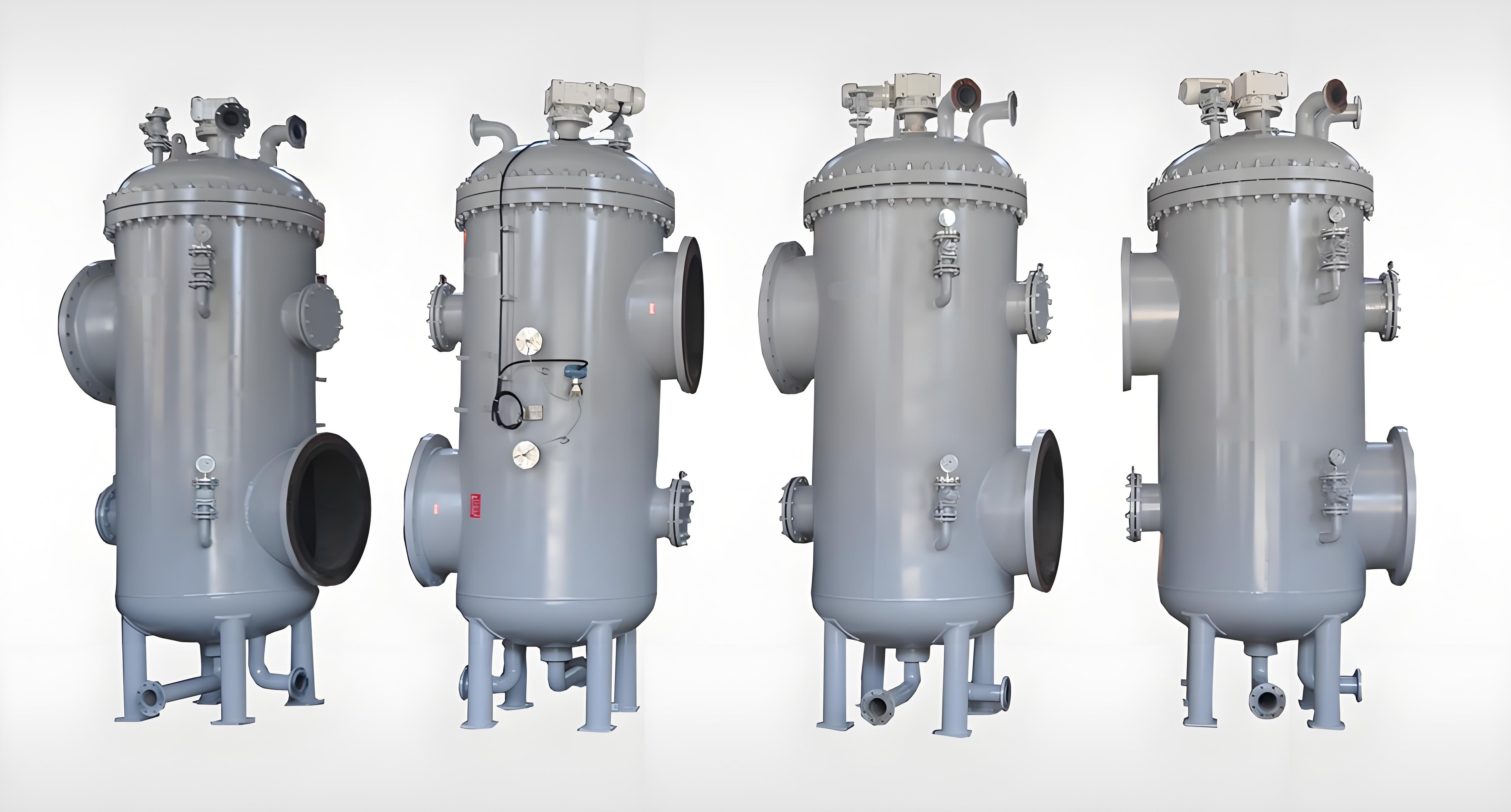

1. Brush Type Automatic Self-cleaning Filter that can be used for pipe DN25 ~DN900. With the advantages of continuous flow, easy maintenance and safe operation, brush type automatic self-cleaning filter is widely used in various industries.
2. Brush Type Automatic Self-cleaning Filter is applicable for harsh environments. The filtering mesh is available from 3500um ~ 5000um and the connecting port diameter van be 8''~36'' for different requirements.
3. The process of self-cleaning is started by a differential pressure switch that monitors the pressure between the filter inlet and outlet at all times. Normally the set value of the differential pressure switch is 0.5Bar (7psi).
Working Principle
When the differential pressure reach the set value, the filter starts the process of self-cleaning: the drain outlet located on the top end of filter will open and the motor drives the cleaning brushes to carry out axial cleaning, by which the impurities are brushed down and discharged by the water flow to the drain outlet. The whole process of self-cleaning takes about 15 ~ 60 seconds, and during the process of self-cleaning, the filtration system is work continuously.Operation of the brush type automatic self-cleaning filter is fully automatic controlled by the equipped intelligent control system.
Design Features
1. Advanced Brush Mechanism

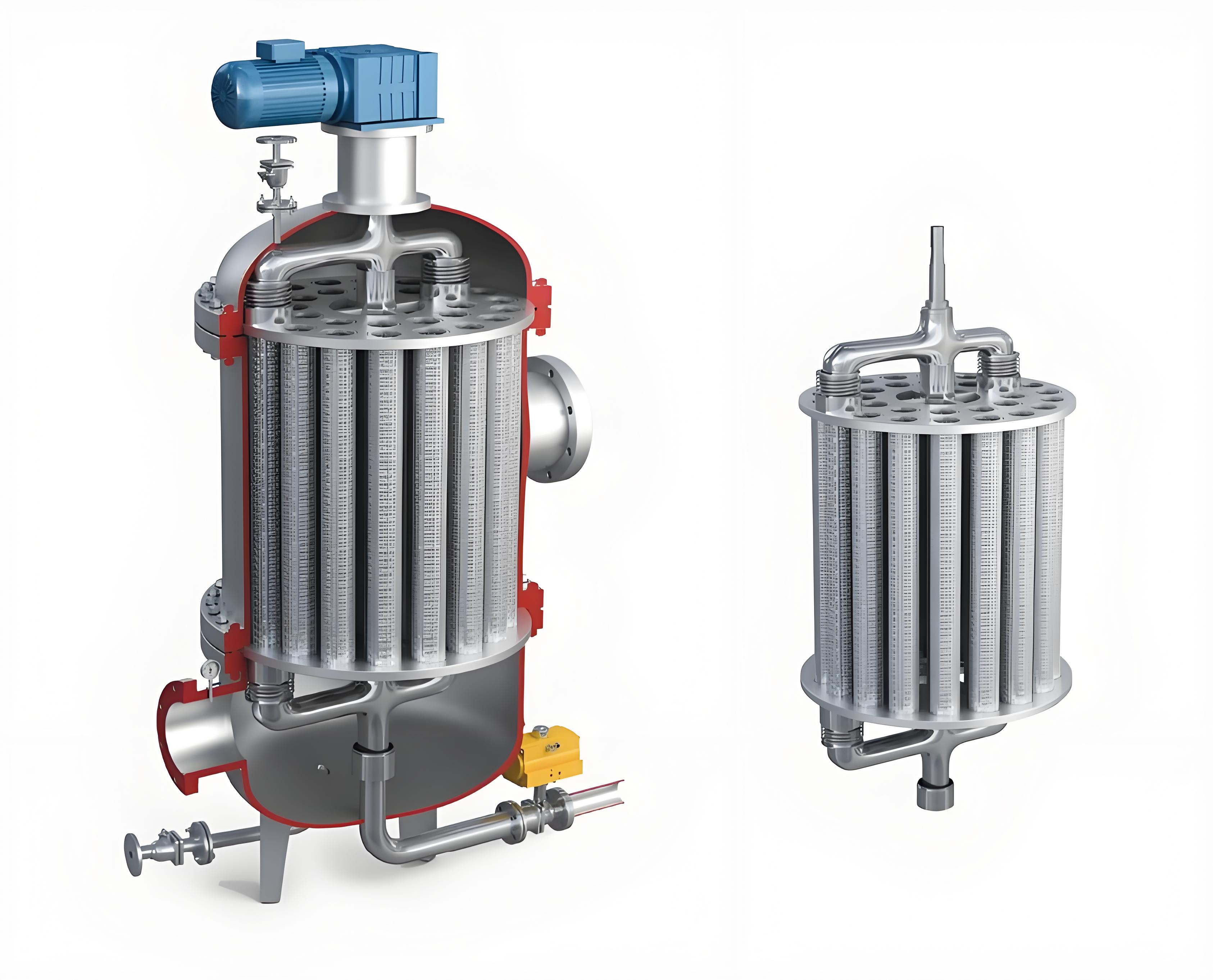

The heart of this filter is its advanced brush mechanism
automatic equipment, which is responsible for automatically cleaning the filter screen. The brush is made from high-quality materials that are durable and resistant to wear and tear. It operates continuously, moving across the filter screen to dislodge and remove accumulated particles.
The brush mechanism is designed to adapt to different types of debris, from fine particles to larger solids. Its flexibility ensures that the filter screen remains clean and efficient, even under heavy contamination conditions.
2. Durable Filter Screen
The filter screen is another critical component of the Brush Type Automatic Self-Cleaning Filter. It is constructed from robust materials that can withstand the rigors of continuous use and exposure to harsh environments. The screen's pores are precisely engineered to trap particles while allowing fluid to pass through freely.
The screen's durability ensures that it maintains its filtration efficiency over time, even as particles accumulate and are removed. This helps to reduce the need for frequent replacements, lowering maintenance costs and extending the filter's lifespan.
3. Automated Cleaning Cycle
One of the most significant advantages of the Brush Type Automatic Self-Cleaning Filter is its automated cleaning cycle. This feature eliminates the need for manual cleaning, saving time and labor costs. The filter is equipped with sensors that monitor the pressure drop across the screen.
When the pressure drop reaches a certain threshold, indicating that the screen is becoming clogged, the filter initiates the cleaning cycle. The brush mechanism engages, moving across the screen to dislodge and remove particles. The cleaning cycle is quick and efficient, ensuring minimal disruption to the fluid flow.
4. Adjustable Cleaning Interval
The Brush Type Automatic Self-Cleaning Filter offers adjustable cleaning intervals to cater to different application needs. Users can set the cleaning cycle to occur at specific intervals or based on pressure drop thresholds. This flexibility allows for optimal performance and efficiency, ensuring that the filter operates within the desired parameters.
5. User-Friendly Control Panel
The filter is equipped with a user-friendly control panel that provides easy access to its settings and operational parameters. The panel features a digital display that shows real-time data, such as pressure drop, flow rate, and cleaning cycle status.
Users can adjust the filter's settings via the control panel, making it easy to customize the filter's operation to suit specific needs. The panel also includes diagnostic tools that help to identify and troubleshoot potential issues, ensuring that the filter operates reliably and efficiently.
6. Compact Design
The Brush Type Automatic Self-Cleaning Filter boasts a compact design that maximizes space utilization. Its footprint is minimized, allowing it to fit into tight spaces and reducing the need for additional infrastructure. This makes it an ideal choice for applications with limited space, such as urban water treatment plants and industrial facilities.
Despite its compact size, the filter maintains high filtration efficiency and capacity. It can handle large volumes of fluid, ensuring that operations run smoothly without compromising on performance.
