Product Overview:

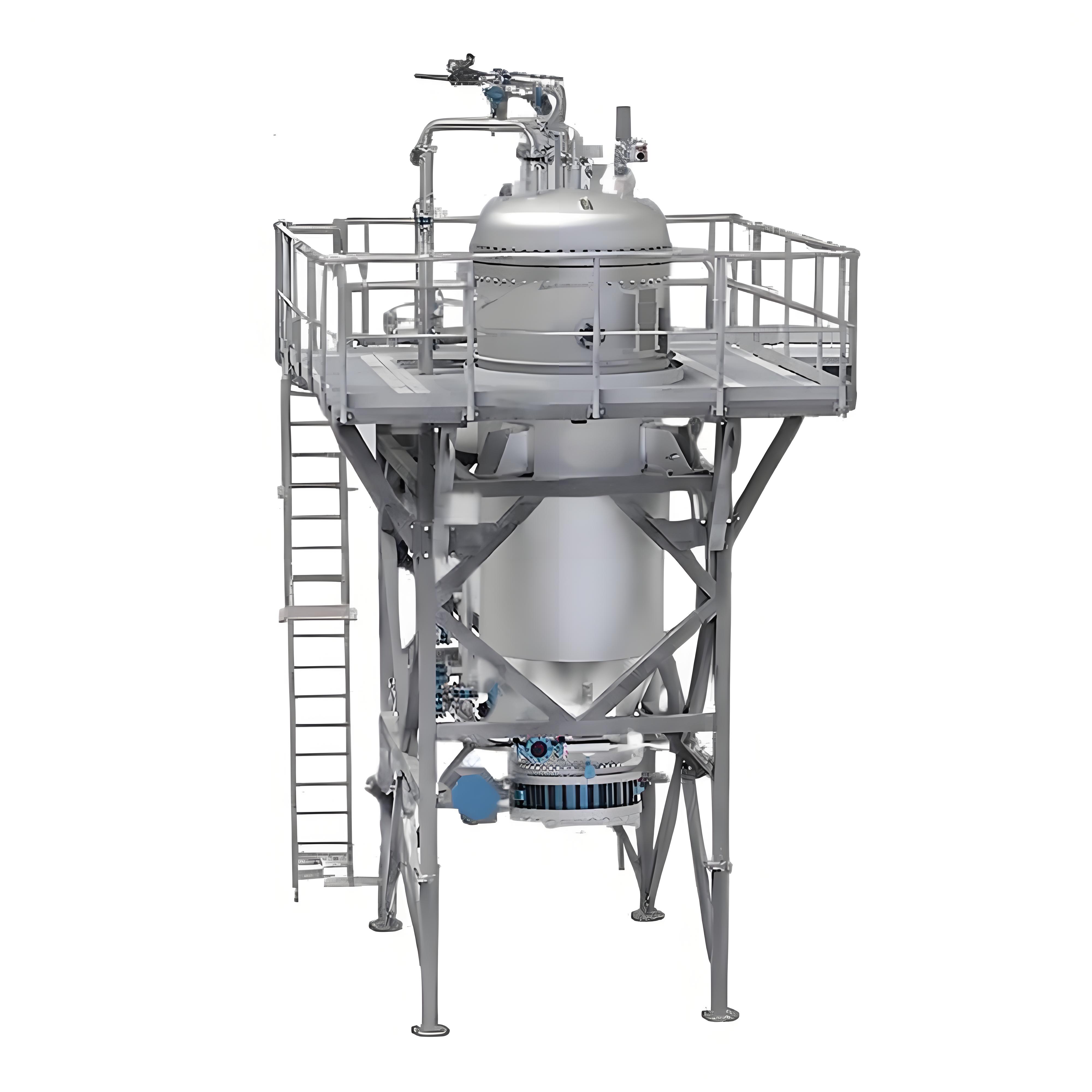

Candle filter: Candle filtration is a relatively advanced, safe, efficient and pollution-free new filtering method. The filter cake is formed on the outside of the filter cloth, and the clarified filtrate is discharged from the inside of the candle through the dip tube.
Scope of application: Filtration, adsorption and recovery of precious
metal catalysts, zeolites and other solids in fine chemicals, plastics, fuels, electroplating, grease, lubricating oil, ceramics, glass, chlor-alkali industry, pharmaceuticals and other industries.
It has the following characteristics:
1. Completely closed filtration, no leakage, no environmental pollution.
2. The filter element design adopts a duplex structure, with a wide range of applications and good filtration effect.
3. It can achieve one-time complete filtration.
4. The filter cake can be washed and dried to obtain greater economic benefits.
5. The slag is discharged cleanly and quickly by gas backblowing, which is suitable for a variety of viscous materials.
6. The entire filtration process can be fully automated.
Working principle:
RHZS candle filter (also called microporous filter) is in a closed container, composed of multiple microporous filter elements (or filter cloth and other filter media on the filter element jacket). When filtering, the slurry is pumped into the filter, and the liquid in the slurry passes through the filter medium and enters the center of the porous filter element and is collected at the clear liquid outlet for discharge. Before the candle filter is formed, the discharged "clear liquid" returns to the raw material slurry inlet and is sent to the filter again for circulation filtration until the candle filter is formed (can meet the filtration requirements), providing a signal to control the clear liquid to stop circulating, and the clear liquid is sent to the next process through the three-way valve for normal filtration.
After a period of normal filtration, when the filter cake on the porous candle wick reaches a certain thickness, a signal is provided to control the feed (stop), and then the residual liquid in the filter is drained. After draining, a signal is provided to control the backflush port (compressed air, nitrogen and saturated steam) for backflush to make the filter cake fall off. After a certain period of backflush, the backflush is stopped, and a signal is provided to open the filter slag discharge port for slag discharge. After the slag discharge is completed, the slag discharge port is closed and the filter returns to the initial state before filtration, ready for the next round of filtration.
Versatile Filtration Capabilities:
The Fully Automatic Candle Filter offers a range of filtration functions, including direct filtration, pre-coating filtration, slurry concentration, filter cake recovery, and filter cake washing.
It can handle a variety of complex filtration scenarios, such as high solid content, viscous liquids, ultra-high precision, and high-temperature applications.
Cost-Effective and Eco-Friendly:
The Fully Automatic Candle Filter offers low filtration costs and good economic benefits.
The filter cakes can be washed, dried, and recycled, reducing waste and promoting sustainability.
The durable design and reliable performance ensure long service life and minimize downtime.
Applications
Pharmaceutical Industry:
Used for the filtration of sodium gluconate and other pharmaceutical intermediates.
Ensures high purity and quality of final products.
Chemical Industry:
Applied in the production of chemicals, pigments, dyes, and other fine chemicals.
Handles viscous and high-solid-content materials effectively.
Food and Beverage Industry:
Used for the filtration of fruit juices, dairy products, and other food and beverage products.
Ensures compliance with food safety and hygiene standards.
Employed in municipal and industrial wastewater treatment processes.
Removes suspended solids, oils, and other contaminants from water.
Mining and Metallurgy:
Used for the filtration of ore slurries, tailings, and other mining-related materials.
Handles high-temperature and abrasive materials effectively.
Paper and Pulp Industry:
Applied in the production of paper and pulp products.
Removes impurities and improves the quality of final products.
Fully Automatic Candle Filter is an advanced filtration system that offers unparalleled performance, efficiency, and reliability. Its unique filter design, automated control system, and versatile filtration capabilities make it an ideal choice for a wide range of industrial applications. With its cost savings, environmental compliance, labor savings, and durability and reliability, the Fully Automatic Candle Filter is a valuable addition to any industrial filtration process.
