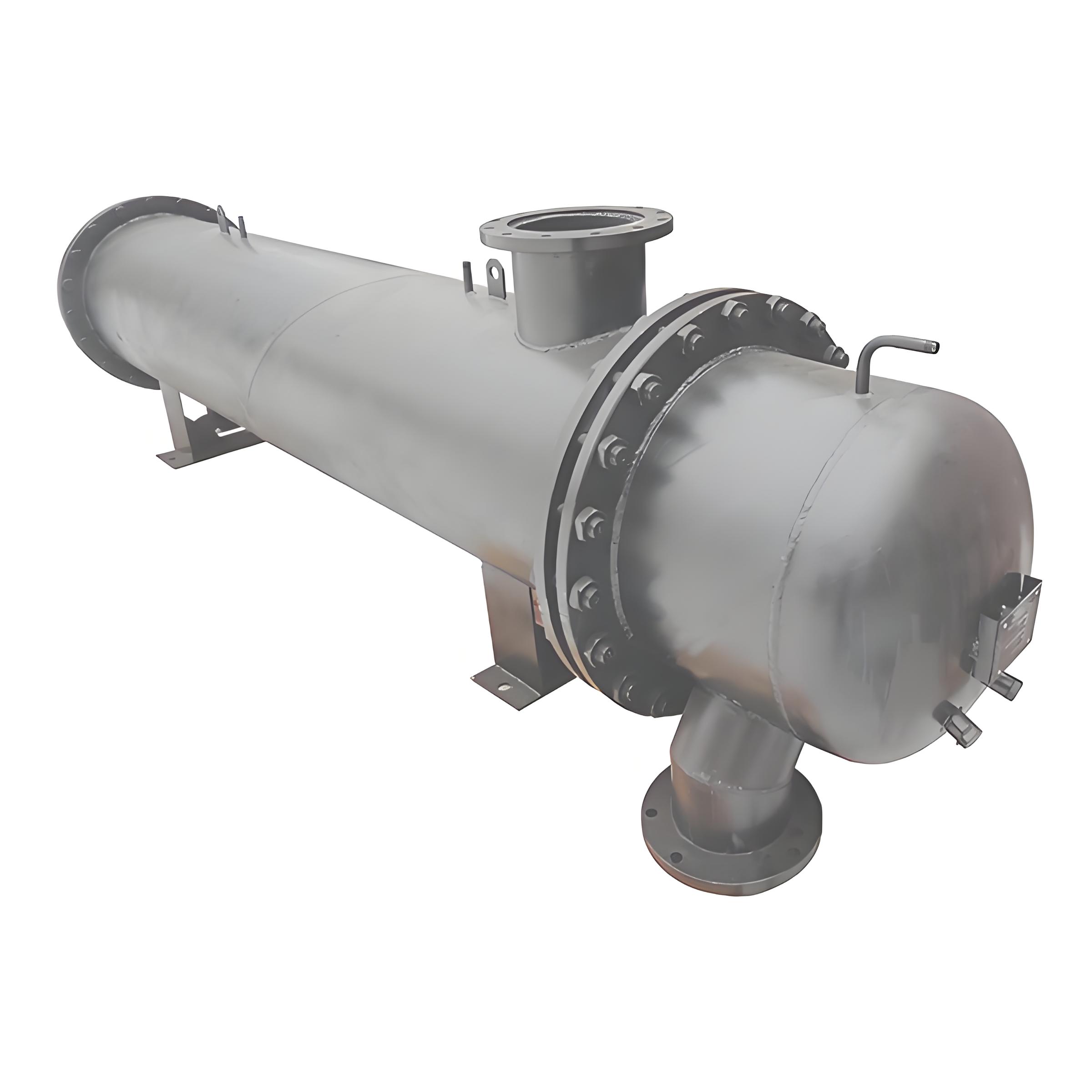

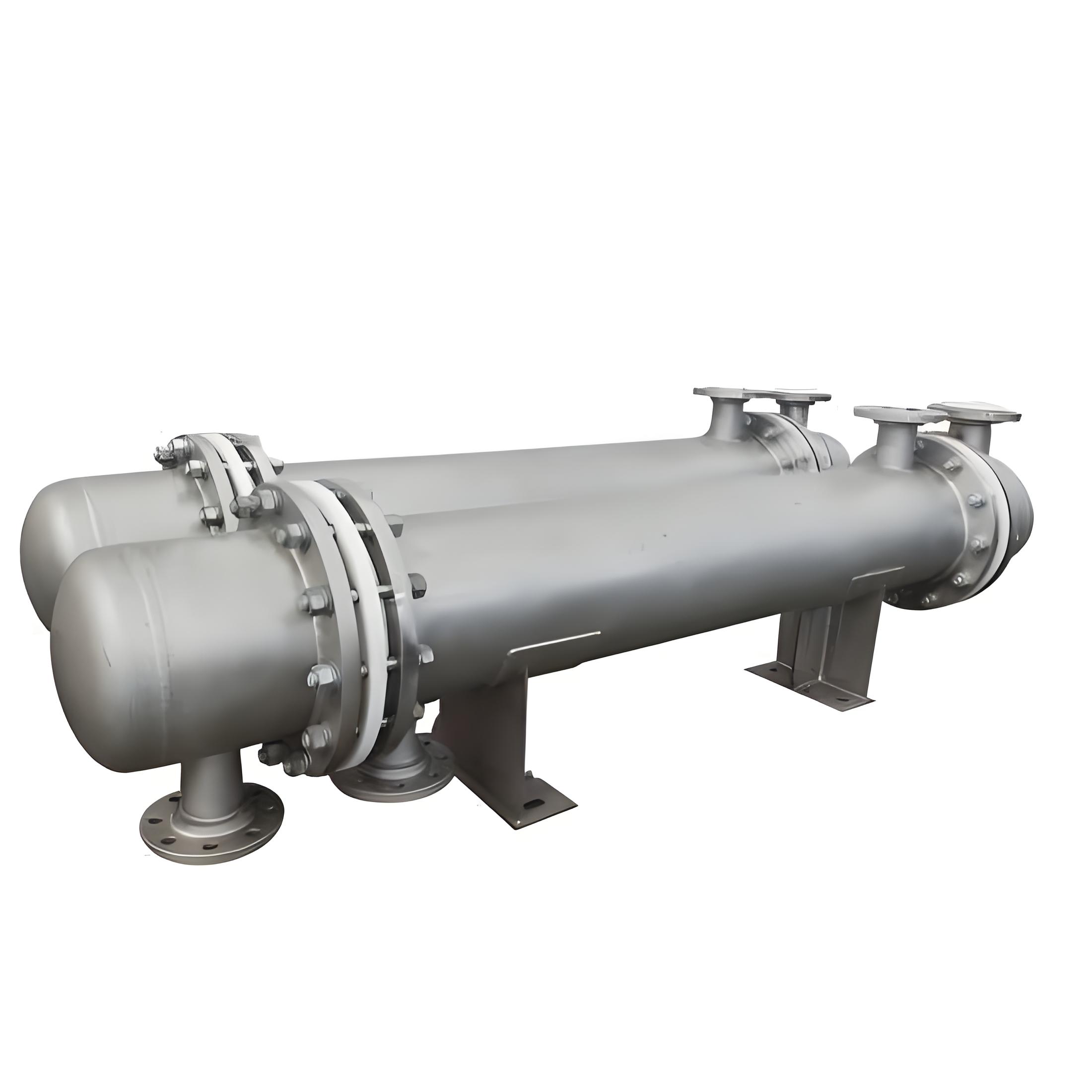

U-Tube Heat Exchanger is a highly efficient
heat exchanger type, incorporating the robust design of
shell and tube heat exchangers. It excels in a variety of industrial applications, leveraging its unique U-shaped tubes to maximize heat transfer and minimize pressure drop. Specializing in
making heat exchangers that meet rigorous standards, our U-Tube Heat Exchanger ensures durability and performance, tailored to suit diverse process requirements. Its seamless construction and superior thermal efficiency make it an ideal choice for demanding heat transfer scenarios.
U-tube heat exchanger structure
1. Shell: usually made of carbon steel or
stainless steel, providing the outer frame of the heat exchanger.
2. Tube bundle: composed of many stainless steel tubes or carbon steel tubes, and the tube bundle is U-shaped.
3. Tube sheet: used to fix the tube bundle and connect the tube to the shell.
4. Head: located at both ends of the shell, closing the shell and providing an interface for connecting the pipeline.
5. Baffle: installed in the shell to change the flow direction of the fluid, enhance turbulence and improve heat transfer efficiency.
Working principle of U-tube heat exchanger
The working principle of U-tube heat exchanger is based on heat conduction and convection heat transfer:
1. The hot fluid flows in the tube and transfers the heat it carries through the tube wall.
2. The cold fluid flows outside the tube, absorbs heat from the tube wall, and increases the temperature of the cold fluid.
3. The tube wall acts as a medium for heat exchange, transferring heat from the hot fluid to the cold fluid.
Features of U-tube heat exchanger
1. Corrosion resistance: Stainless steel material has good corrosion resistance and is suitable for a variety of chemical media.
2. High temperature and high pressure resistance: Suitable for high temperature and high pressure working environment.
3. Easy to clean and maintain: The tube bundle can be disassembled for easy cleaning and maintenance.
4. High heat transfer efficiency: Due to the turbulent flow of the fluid inside and outside the tube, the heat transfer efficiency is high.
5. Compact structure: Small size, small footprint, suitable for occasions with limited space.
6. Easy installation: Modular design, easy installation and disassembly.
7. Not easy to scale: The inner wall is smooth, reducing the possibility of scaling.
Application fields of U-tube heat exchanger
1. Petrochemical industry: used for heating, cooling, condensation and evaporation processes.
2. Food industry: used for heating and cooling of products such as milk, juice, beer.
3. Pharmaceutical industry: used for heat exchange in product synthesis and preparation processes.
4. Energy industry: used for heat recovery and heat exchange in power generation processes.
5. Environmental protection field: used for heat recovery in wastewater treatment and waste gas treatment.
6. Heating and air conditioning system: used for the exchange of hot and cold
water to provide heating and cooling.
Principles and Structure
A U-tube heat exchanger belongs to the broader category of shell-and-tube heat exchangers. Its defining feature is the U-shaped tubing configuration, where tubes form a U-bend at the center and are fixed at both ends to a single tube sheet.
Key Components
1. Tube Sheet: A flat plate that holds the ends of the U-tubes and separates the shell side from the tube side.
2. Shell: A cylindrical vessel that houses the U-tubes and contains the fluid that circulates outside the tubes.
3. Tube Bundle: An assembly of U-tubes that are bundled together and inserted into the shell.
4. Baffles: Structures inside the shell that direct the flow of the shell-side fluid, enhancing heat transfer by increasing the fluid's path length and contact time with the tube walls.
5. Bonnet/Head: A cover at one end of the shell that provides access for maintenance and cleaning.
6. Nozzles: Connections for inlet and outlet of fluids on both the tube and shell sides.
Operating Principle
1. In a U-tube heat exchanger, two fluids of different temperatures flow through the system. One fluid flows through the tubes, while the other circulates around the outside of the tubes within the shell. Heat is transferred from the hotter fluid to the colder fluid through the walls of the tubes.
2. Tube-side Fluid: This fluid typically flows in a single pass, entering one end of each tube and exiting the other. In some designs, multiple passes are possible, depending on the number of bends and the configuration of the tube bundle.
3. Shell-side Fluid: This fluid flows through the shell, its path directed by baffles to ensure maximum heat transfer efficiency. The number of passes on the shell side can vary, with common designs including 1, 2, or 4 passes.
Installation of a U-tube heat exchanger typically involves the following steps:
1. Preparation: Ensure that the installation site is clean and that all necessary equipment and materials are on site.
2. Positioning: Position the heat exchanger in its final location, ensuring that it is level and stable.
3. Piping Connections: Connect the inlet and outlet nozzles to the existing piping system, using appropriate fittings and valves.
4. Inspection: Conduct a thorough inspection to ensure that all connections are tight and that there are no leaks.
5. Startup: Start the system and monitor for any abnormalities, such as vibrations or leaks.
Maintenance
1. Inspection: Regularly inspect the heat exchanger for signs of corrosion, wear, and leakage.
2. Cleaning: Clean the tube bundle and shell internally and externally to remove fouling and deposits that can impair heat transfer.
3. Tube Replacement: Replace damaged or worn-out tubes as needed to maintain the heat exchanger's efficiency.
4. Pressure Testing: Conduct pressure tests to ensure that the heat exchanger can handle the operating pressures and temperatures.
Introducing the shell and tube heat exchanger, a cornerstone in the realm of optimal thermal transfer solutions. This heat exchanger represents the pinnacle of efficiency when it comes to industrial cooling and heating applications, making it an indispensable asset in various industrial settings.Our shell and tube heat exchanger falls into the esteemed category of heat exchanger types known for their exceptional performance and durability. Constructed with materials that are inherently corrosion-resistant, this heat exchanger is engineered to withstand the harshest of industrial environments, ensuring longevity and sustained high performance over extended periods.Making a heat exchanger that meets the rigorous demands of industrial use required meticulous design and premium material selection. The shell and tube configuration not only maximizes heat transfer efficiency but also facilitates easy maintenance and robust operation. Whether you're dealing with high-pressure steam or aggressive chemicals, our heat exchanger remains steadfast, delivering consistent results.
