Finned Radiator or Finned Heat Exchanger is a heat dissipation device that increases the heat exchange surface area by adding fins (usually metal sheets). It is widely used to improve heat exchange efficiency, especially in the process of fluid cooling and heating. The basic structure of finned radiator is to weld or fix the fins on the surface of pipes or metal plates, and use the fins to increase the contact area with the surrounding air or fluid, thereby improving the heat dissipation capacity.
Features of finned radiator
- Increase heat exchange area: The fins provide more contact surface, greatly increase the heat exchange area, and effectively improve the heat dissipation capacity.
- Good heat conduction effect: The fins are usually made of good thermal conductor materials (such as aluminum, copper or stainless steel), ensuring that heat can be quickly and effectively transferred from the fluid to the fins, and then from the fins to the air or other cooling medium.
- Save space: The design of finned radiator is more compact than traditional radiators, occupies less space, and is suitable for applications with limited space.
- Efficient heat dissipation: By increasing the heat exchange surface and optimizing the flow design, the finned radiator can improve the heat exchange efficiency and is suitable for places that require a large amount of heat dissipation.
- Strong adaptability: The finned radiator can be used for different media (liquids, gases, etc.), and the shape, material and arrangement of the fins can be designed according to the specific application.
Composition of finned radiator

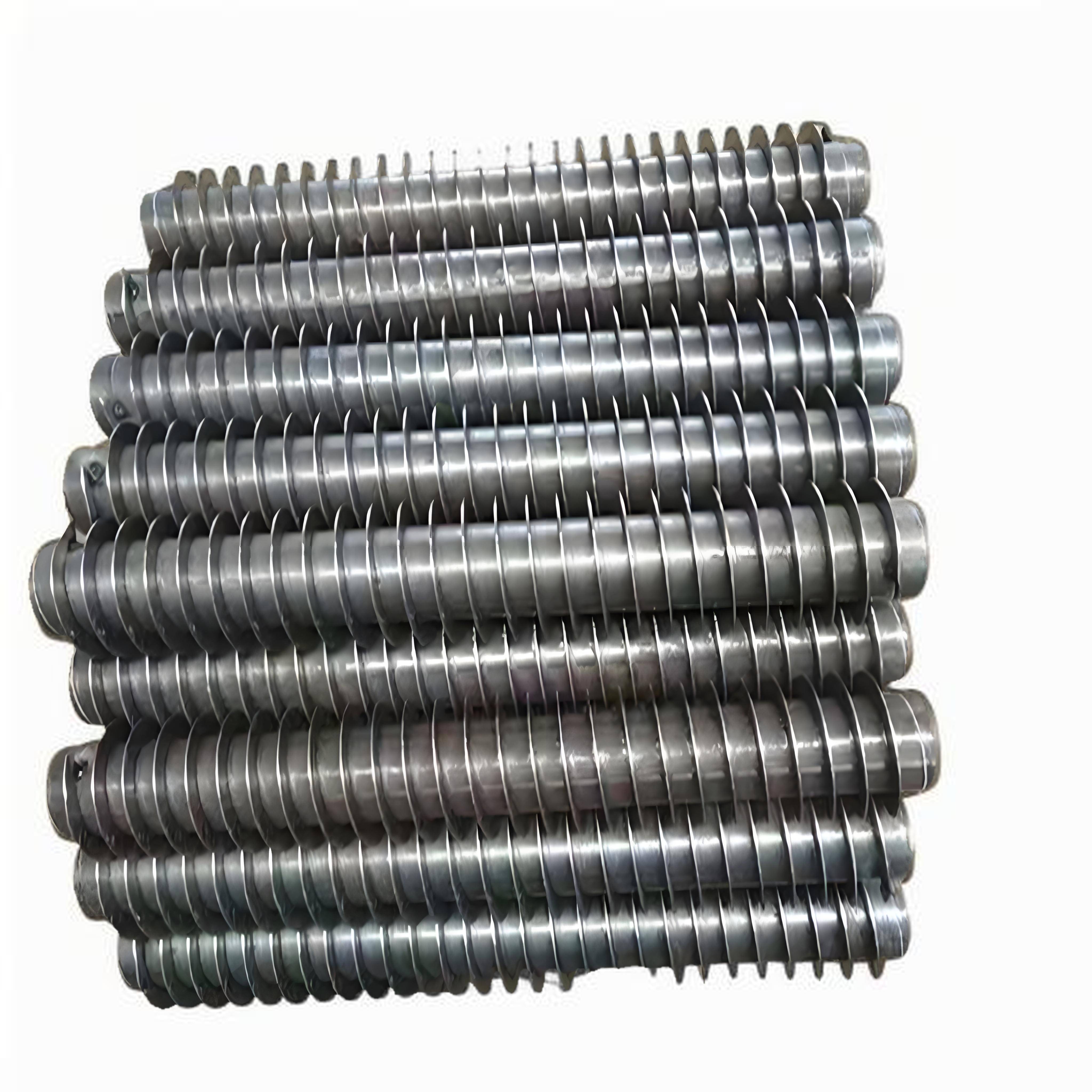

- Fins: Fins are the key components of the radiator and are usually made of materials such as aluminum, copper, and stainless steel. The shape and arrangement of the fins can be designed as needed. Common shapes include flat fins, spiral fins, corrugated fins, etc.
- Pipes: The fluid flows through the pipes, and the material of the pipes also affects the heat conduction effect. Commonly used materials include copper, steel, aluminum, etc.

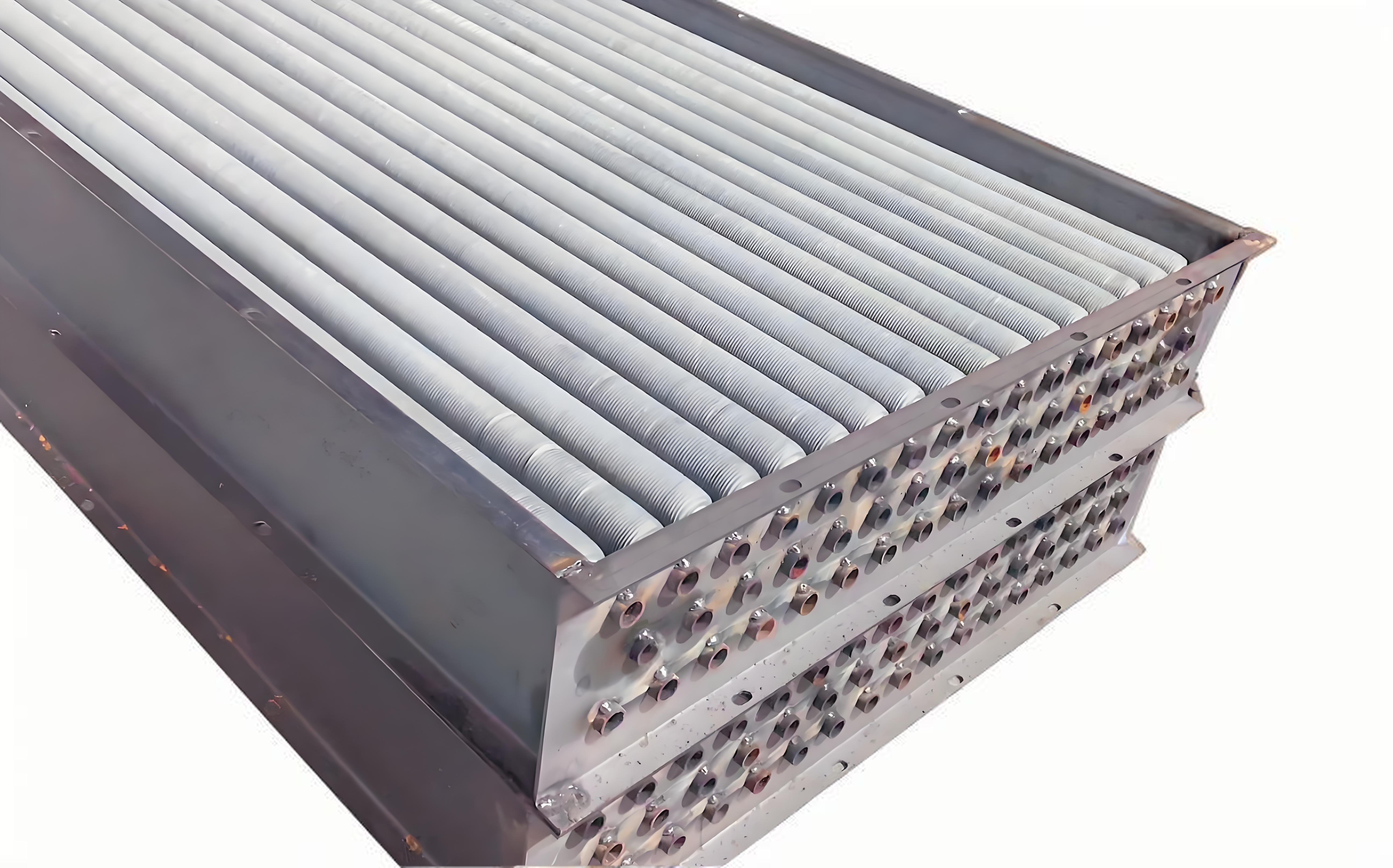

- Brackets and frames: structures used to support fins and pipes to ensure stable operation of the radiator.
- Heat dissipation surface: Heat is exchanged with air or coolant through the surface of the fins. The heat dissipation capacity of the radiator is directly related to the design and configuration of the heat dissipation surface.
Advantages of finned radiators
- Efficient heat dissipation: The fins significantly improve the heat dissipation efficiency by increasing the heat exchange area, which is suitable for working environments with high heat loads.
- Compact design: The finned radiator takes up little space and is suitable for applications with limited space, such as automotive cooling systems, air conditioning equipment, etc.
- Diversity: According to different working environments and media, finned radiators can be designed into different shapes, sizes and materials to meet various application requirements.
- Adaptable to high temperatures: The materials and designs of finned radiators can cope with high temperature environments and are suitable for the heat dissipation needs of high temperature fluids.
- Easy to maintain: Since the structure of the finned radiator is relatively simple, it is relatively easy to clean and repair
