High Pressure Heat Exchanger is a heat exchange equipment working under high pressure conditions. It is widely used in chemical, petroleum, natural gas, electricity, metallurgy, food processing and other industries. It is mainly used for heat exchange between fluids of different temperatures and pressures to achieve the purpose of heating or cooling. The design and structure of high pressure heat exchangers usually need to meet the requirements of high pressure environments, so its manufacturing materials, technology, and processes have high standards.
Main features of high pressure heat exchangers
1. High pressure resistant design
High pressure heat exchangers can withstand high working pressures. The common working pressure range is usually above 10MPa, and some special designs can reach tens of MPa. In order to ensure safety, reinforced materials and structures are used in the design.
2. Efficient heat exchange
High pressure heat exchangers usually have high heat exchange efficiency, can achieve good heat transfer under high pressure conditions, and ensure efficient use of energy.
3. Special material selection
High pressure heat exchangers generally use high-strength, corrosion-resistant materials, such as alloy steel, titanium alloy, special
stainless steel, etc., to cope with corrosion and damage that may occur under high temperature and high pressure environments.
4. Various types
There are many types of high-pressure heat exchangers, including
shell and tube heat exchangers, plate heat exchangers, spiral plate heat exchangers, etc., each type is suitable for different process requirements.
Working principle of high-pressure heat exchanger
High-pressure heat exchangers achieve the purpose of heating or cooling by exchanging heat between two or more fluids. Under high pressure, the hot fluid transfers heat through the pipes or channels of the heat exchanger, and the cold fluid absorbs heat through another channel. In this process, heat is transferred from the high-temperature fluid to the low-temperature fluid, causing the temperature to change.
The specific working steps are as follows:
1. Hot fluid enters the high-pressure heat exchanger
The hot fluid (such as high-temperature gas or liquid) enters the hot side channel of the heat exchanger under high pressure.
2. Heat transfer
The hot fluid transfers heat through the
metal surface separated from the cold fluid, and the heat is transferred to the cold fluid through the metal surface.
3. Cold fluid absorbs heat
The cold fluid (such as low-temperature liquid or gas) enters the cold side channel and absorbs heat, causing its temperature to rise.
4. Outflow of hot and cold fluids
After the heat exchange process is completed, the cooled hot fluid and the heated cold fluid are discharged from their respective outlets.
Types of high-pressure heat exchangers

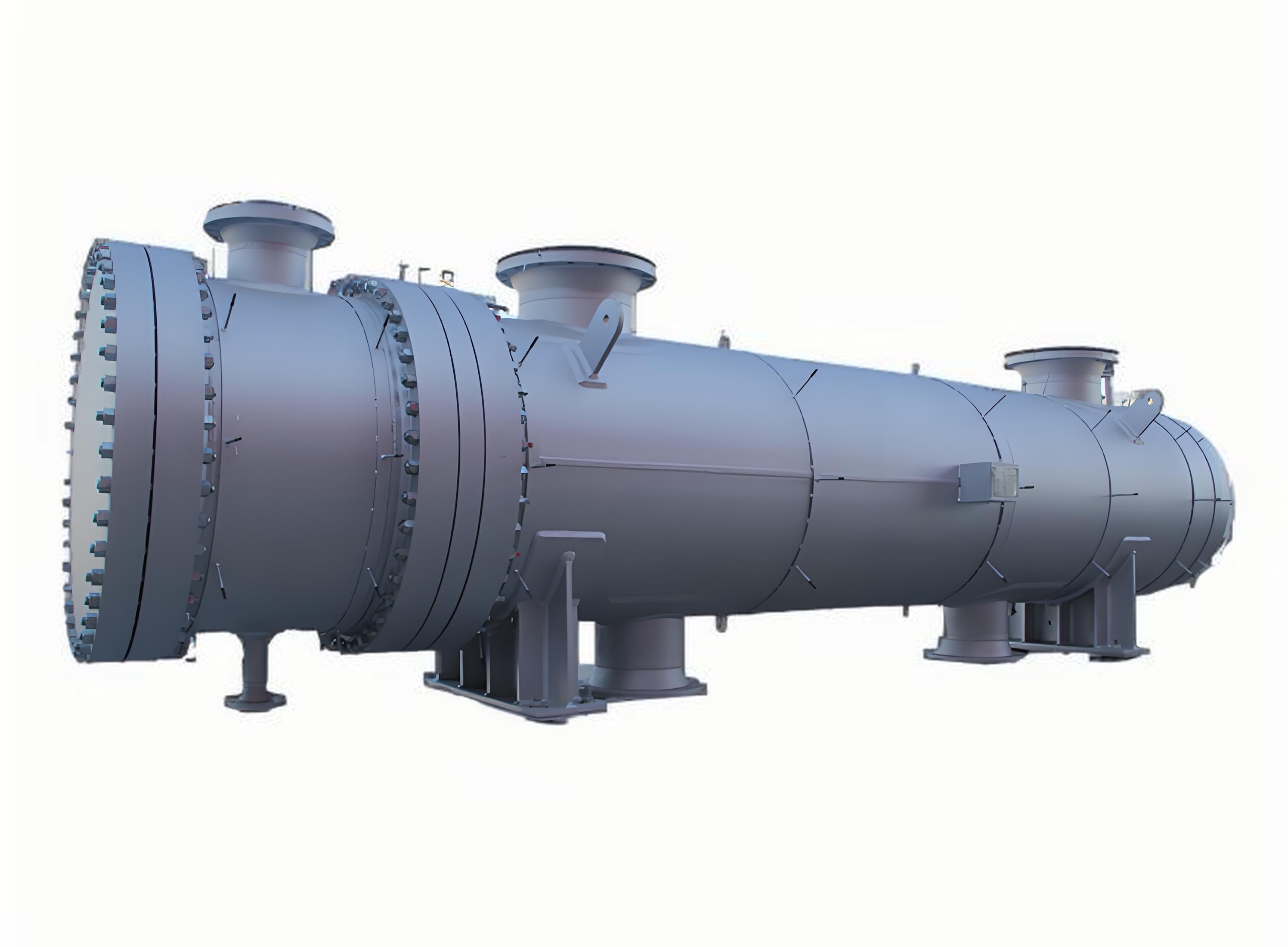

1. Shell and tube high-pressure heat exchanger
This is one of the most common types. The structure consists of multiple tube bundles. The hot fluid flows through the tubes, and the cold fluid flows in the outer shell of the tube. This structure is simple and suitable for heat exchange with large flow and high pressure difference.
2. Plate high-pressure heat exchanger
It consists of multiple metal plates arranged alternately. The hot fluid and the cold fluid flow alternately through different channels, and have high heat exchange efficiency. Plate heat exchangers are suitable for occasions with high space and volume requirements.
3. Spiral plate high-pressure heat exchanger
Adopting a spiral plate design, the fluid flows between the spiral plates, which can effectively improve the heat exchange efficiency and is suitable for high temperature and high pressure process environments.
4. Finned tube heat exchanger
This type of heat exchanger increases the heat exchange area by adding fins to the surface of the tube. It is often used for heat exchange between gas and liquid and is suitable for occasions with higher working pressure and large temperature difference.
