Revolutionary External Half-Tube Reactor

The outer half-tube reactor stands as a testament to engineering excellence, redefining the landscape of pressure vessels used in a myriad of industrial processes. This versatile reactor is a cornerstone in the production lines of the chemical, food, coating, hot melt adhesive, silicone, paint, medicine, and petrochemical industries. Its design caters to a wide range of applications, including reactions, evaporation, synthesis, polymerization, saponification, sulfonation, and nitration. The reactor's innovative features and robust construction make it an indispensable tool for ensuring efficiency, safety, and sustainability in industrial operations.

The external half-tube reactor boasts an impressive array of features that set it apart from traditional pressure vessels. One of its most notable attributes is its ability to avoid rapid heating, which ensures a more controlled and even temperature distribution within the reactor. This feature is crucial for maintaining the integrity of sensitive reactions and preventing the degradation of heat-sensitive materials. Additionally, the reactor is designed to withstand high temperatures and is corrosion-resistant, making it suitable for use in harsh chemical environments. Its hygienic design complies with stringent health regulations, and it does not contribute to environmental pollution. Eliminating the need for automatic heating by a boiler further enhances its energy efficiency. User-friendly operations and broad applicability across multiple industries underscore the reactor's versatility and value.

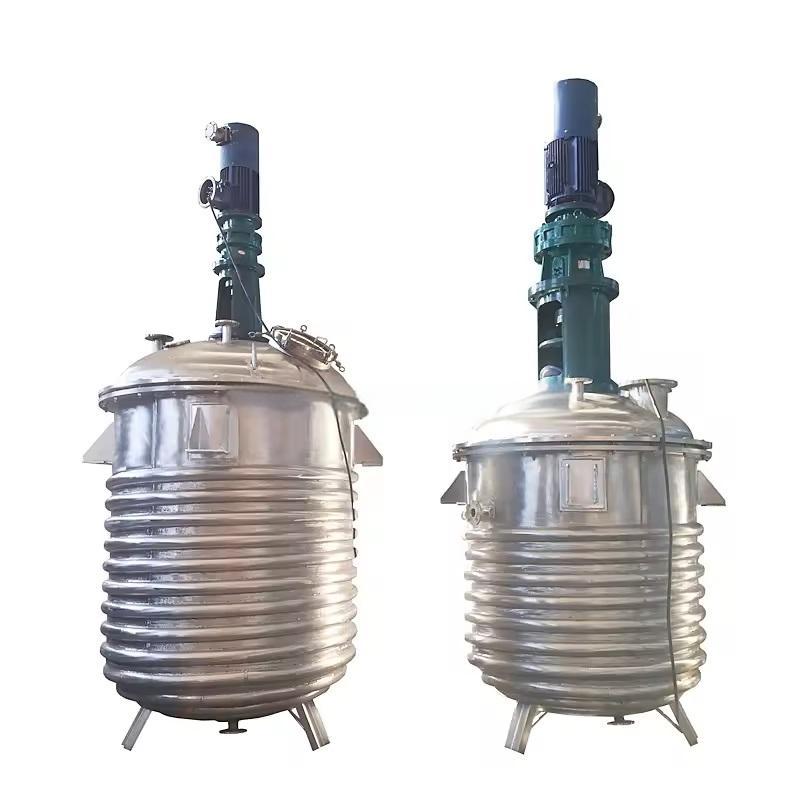

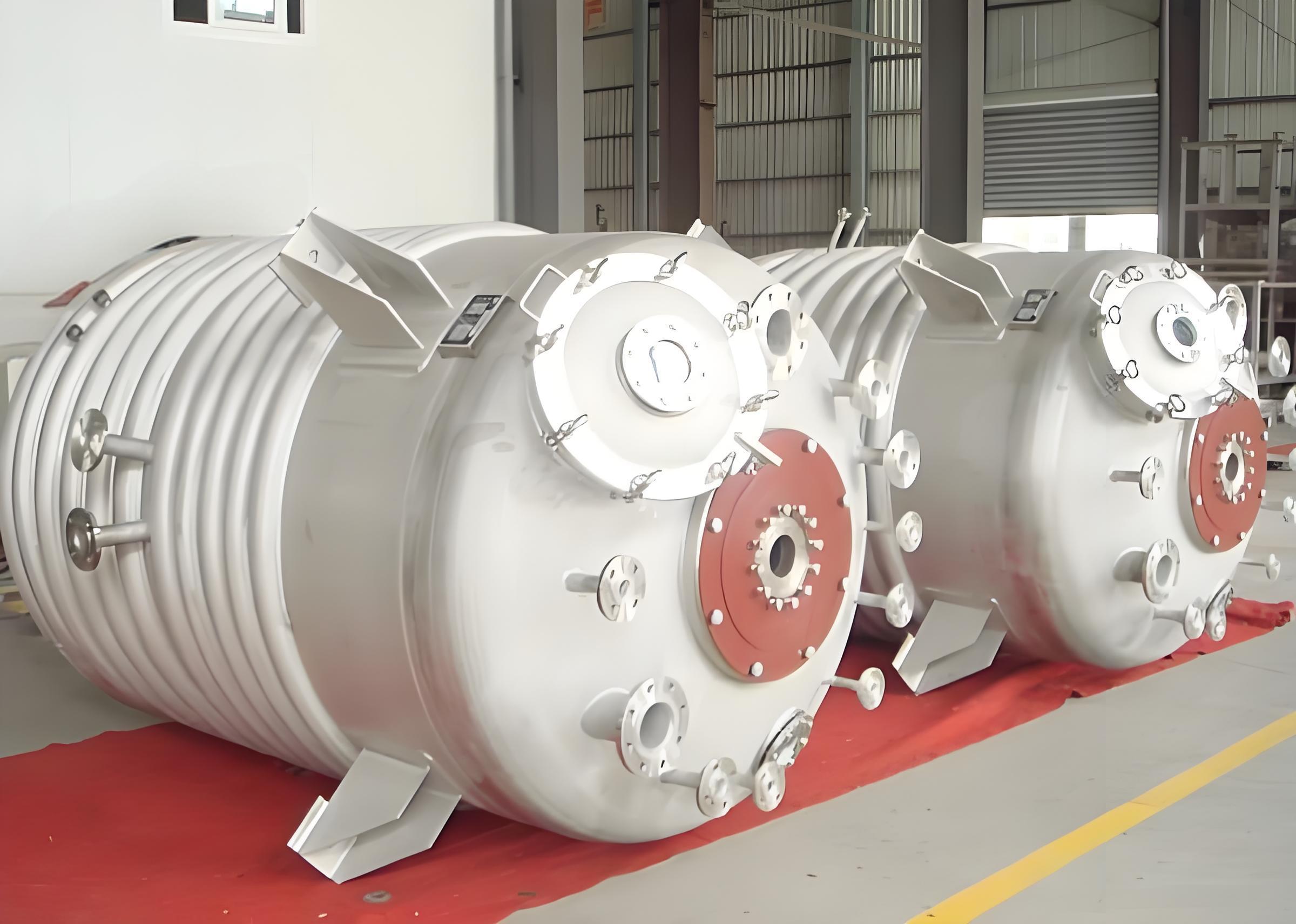

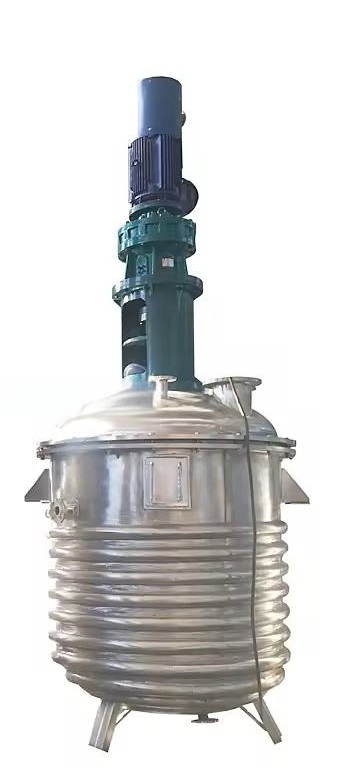

The external half-tube reactor comprises four essential components: the tank body, the outer half-tube, the stirring device, and the support seat. Each component is meticulously designed to ensure optimal performance and reliability. The tank body, constructed from stainless steel (SUS304, SUS316L, or SUS321) depending on process requirements, features a mirror-polished inner surface. This facilitates easy cleaning through CIP (Clean-In-Place) systems and ensures compliance with hygiene regulations in food and pharmaceutical applications. The outer half-tube, also crafted from stainless steel (SUS304 or SUS316L), is seamlessly welded to the tank body using an automatic welding machine, guaranteeing structural integrity and leak-proof operation.



The reactor's design incorporates a suitable diameter-to-height ratio, which optimizes the mixing efficiency and heat transfer characteristics. Customized stirring devices are available upon request, tailored to the specific needs of the process. The stirring shaft seal employs a pressure-resistant sanitary mechanical seal device, maintaining the working pressure within the tank and preventing material leakage. This not only safeguards against contamination and material loss but also ensures the reactor meets the highest hygiene standards in sensitive applications like pharmaceuticals and food processing. The support seat is available in either a hanging ear type or a floor-standing leg type, accommodating various operational requirements and facilitating easy installation and maintenance.

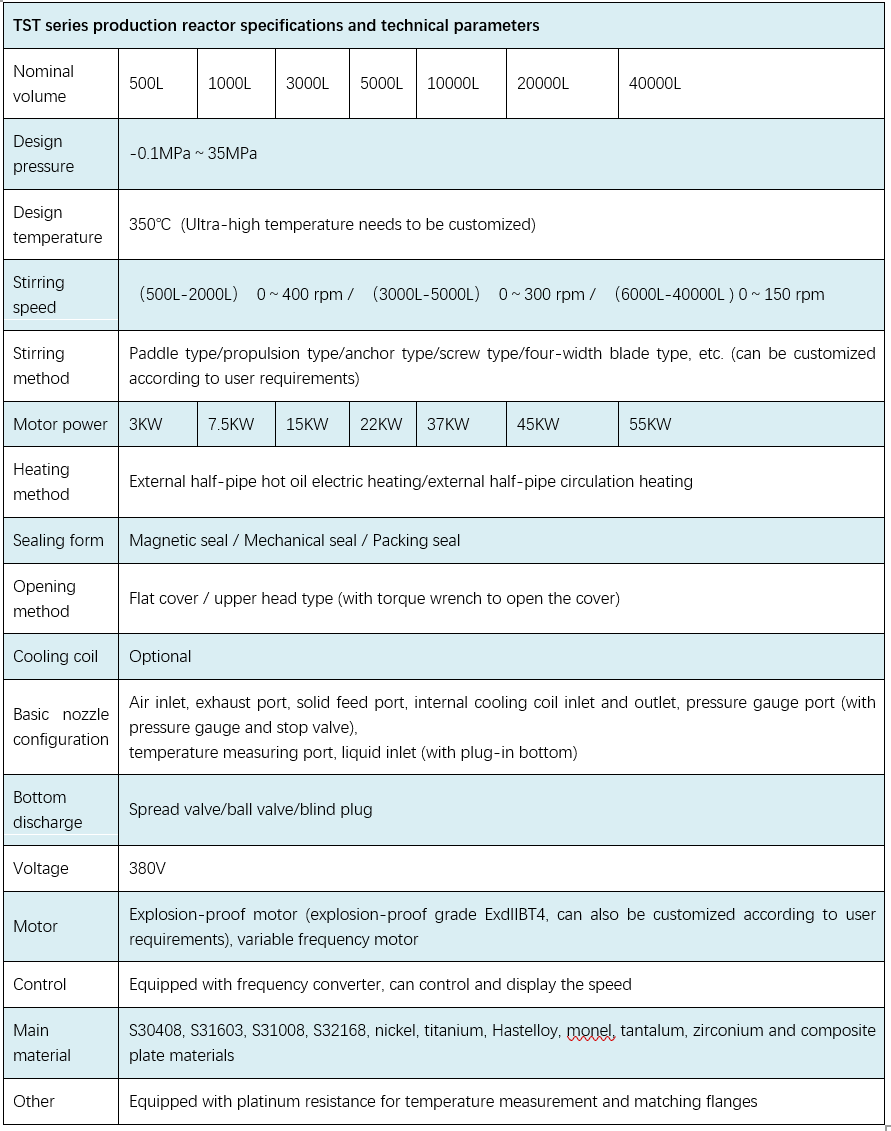

Diving deeper into the technical specifications of the external half-tube reactor reveals its sophisticated engineering and innovative design. The tank body's stainless steel construction provides robust corrosion resistance, withstanding the aggressive chemicals often used in industrial processes. The mirror-polished inner surface not only enhances cleanability but also reduces the risk of contamination, crucial for maintaining product quality and compliance with industry standards. The outer half-tube design optimizes heat transfer, ensuring efficient heating and cooling of the reactor contents, which is vital for controlling reaction rates and product properties.



The reactor's stirring device is a custom-engineered component, designed to provide thorough mixing and shear forces tailored to the process needs. The pressure-resistant sanitary mechanical seal on the stirring shaft is a critical feature, preventing leaks and maintaining the reactor's integrity under pressure. This seal design also facilitates easy maintenance and replacement, reducing downtime and operational costs. The support seat options—hanging ear or floor-standing leg—offer flexibility in reactor placement and operational setup, accommodating different plant layouts and process requirements.

The versatility of the external half-tube reactor extends across a diverse range of industries and applications. In the chemical industry, it is instrumental in synthesizing complex molecules and polymers, facilitating reactions under controlled conditions. The food industry leverages its hygienic design and temperature control capabilities for processing and preserving food products. The reactor's corrosion resistance and efficient heat transfer make it ideal for producing coatings, hot melt adhesives, silicones, and paints, ensuring consistent product quality and performance.



In the pharmaceutical industry, the reactor's compliance with hygiene regulations and ability to handle sensitive reactions under pressure are paramount. Its use in sulfonation, nitration, and other critical chemical transformations underscores its importance in the synthesis of active pharmaceutical ingredients (APIs) and intermediates. The petrochemical industry benefits from the reactor's high-temperature resistance and ability to handle hazardous materials safely, making it essential for refining and processing operations. The reactor's broad applicability and customizable features position it as a strategic asset in numerous industries, driving innovation and efficiency in industrial processes.

As industries continue to evolve, the external half-tube reactor stands poised for further advancements and applications. The ongoing trend towards sustainability and energy efficiency presents opportunities for enhancing the reactor's design and performance. Incorporating advanced materials and technologies, such as heat exchangers with higher thermal efficiency or innovative stirring mechanisms, could further improve the reactor's energy footprint and operational efficiency. Additionally, exploring new applications in emerging fields like biotechnology and nanotechnology could expand the reactor's market reach and contribute to groundbreaking innovations.



Continuous research and development efforts are crucial for maintaining the reactor's competitive edge. Collaborating with industry stakeholders, academic institutions, and regulatory bodies will ensure that the reactor evolves in tandem with industry needs and regulatory requirements. As industries increasingly prioritize safety, sustainability, and efficiency, the external half-tube reactor will continue to play a pivotal role, driving progress and fostering innovation in the chemical processing landscape.



In conclusion, the external half-tube reactor is a paragon of engineering excellence, offering unparalleled performance and versatility across multiple industries. Its innovative design, robust construction, and customizable features make it an indispensable tool for ensuring the efficiency, safety, and sustainability of industrial processes. As industries continue to evolve, the reactor's potential for further advancements and applications will undoubtedly solidify its position as a cornerstone of modern chemical processing.
