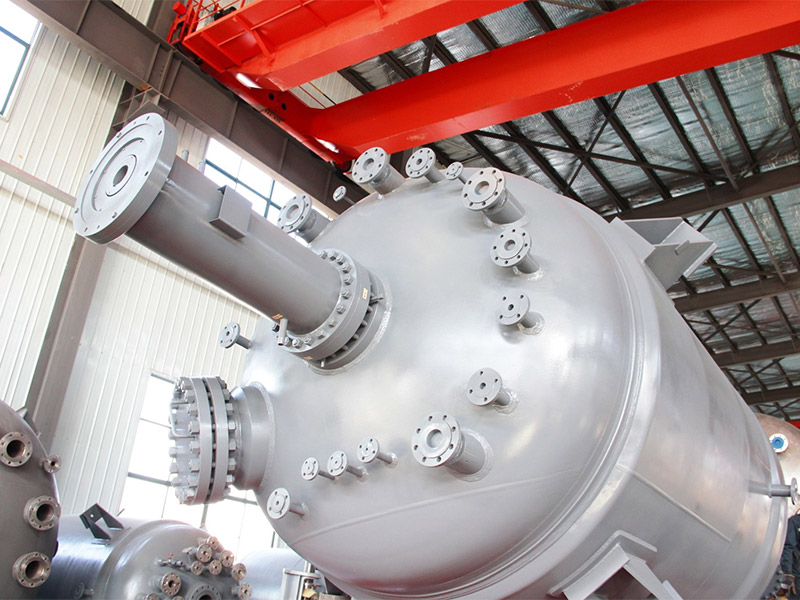

Sturdy Carbon Steel Reactor Designed for Durability





The Carbon Steel Reactor stands as a pivotal piece of equipment in numerous industrial sectors, distinguished by its construction from robust carbon steel material. This type of reactor finds extensive application in the chemical, pharmaceutical, food processing and other industries, catering to processes such as chemical reactions, mixing, heating, stirring, and more. Unlike stainless steel reactors, carbon steel reactors offer a more economical alternative, albeit with some trade-offs in corrosion resistance, high-temperature tolerance, and pressure withstanding capabilities. As such, they are ideally suited for environments where corrosion demands are moderate, and temperature and pressure conditions are not excessively severe. This versatility and cost-effectiveness have made carbon steel reactors a staple in many manufacturing and processing plants worldwide.





Delving into the anatomy of a carbon steel reactor reveals a design that mirrors its stainless steel counterparts, albeit with specific material adaptations. The reactor's structure is meticulously engineered to ensure efficiency, safety, and durability. Here are the key components that constitute a typical carbon steel reactor:



Reactor Body: Serving as the backbone of the reactor, the body is primarily fabricated from carbon steel grades like Q235, Q345, or A106. These materials offer remarkable mechanical strength and welding properties, making them suitable for a wide range of chemical reactions. The reactor body's design often incorporates features to enhance heat transfer, pressure resistance, and ease of maintenance.

Stirring Device: Efficient mixing is crucial for uniform reaction kinetics, and the stirring device plays a pivotal role. Various agitator types, such as paddle, anchor, screw ribbon, and impeller, are available. The choice of agitator depends on factors like reactant viscosity, reaction rate, and the desired mixing intensity. Proper agitation ensures optimal reaction conditions and improved product quality.

Heating and Cooling Jackets: Temperature control is fundamental in chemical reactions, and carbon steel reactors are typically equipped with heating and cooling jackets. The heating jacket can utilize steam, electric heating, or hot water to maintain or elevate the reaction temperature. Conversely, the cooling jacket employs cooling water or refrigerant to moderate high temperatures, ensuring the reaction proceeds within desired parameters. This dual-jacket system provides flexibility and precision in temperature management.



Beyond its structural components, the operational features of a carbon steel reactor further enhance its versatility and efficiency. The reactor's design incorporates several practical aspects that streamline production processes and ensure operator safety:



Feed and Discharge Ports: These ports facilitate the introduction of raw materials and the extraction of finished products. Strategically placed valves allow for precise control over material flow, ensuring minimal spillage and maximizing operational cleanliness. The design of these ports often includes quick-disconnect features for ease of use and reduced downtime during maintenance or product changes.

Temperature and Pressure Control System: Monitoring and controlling reaction conditions are paramount. Carbon steel reactors are equipped with advanced temperature and pressure monitoring systems, comprising thermometers, pressure gauges, safety valves, and sensors. These instruments provide real-time data, enabling operators to adjust process parameters promptly, thereby maintaining optimal reaction conditions and enhancing safety.

Sealing Device: Ensuring a leak-proof environment is critical, and carbon steel reactors employ various sealing systems, such as mechanical seals, packing seals, and O-rings. These seals are designed to withstand the chemical and thermal stresses of the reaction environment, preventing material leakage and maintaining process integrity.



Safety is a cornerstone in the design and operation of carbon steel reactors. The integration of multiple safety features ensures that the reactor operates within safe parameters, mitigating potential hazards and protecting personnel and equipment.



Pressure Safety Valves: These valves are designed to relieve excess pressure, preventing over-pressurization and potential explosions. They are set to activate at predetermined pressure thresholds, ensuring that the reactor operates within its safe working pressure range.

Over-Temperature Alarms and Automatic Shutdown Protection: These systems monitor the reactor's temperature and initiate alarms or automatic shutdowns if unsafe conditions are detected. This prevents thermal runaway and other temperature-related hazards, safeguarding both the reactor and the surrounding area.

Emergency Ventilation and Spill Containment: Additional safety measures include emergency ventilation systems to disperse harmful vapors in the event of a leak and spill containment structures to collect and neutralize any leaked materials. These features contribute to a comprehensive safety protocol, minimizing the risk of accidents and environmental contamination.



The versatility of carbon steel reactors is evident in their widespread application across diverse industries. Each sector leverages the reactor's unique attributes to meet specific process requirements, demonstrating its adaptability and value:



Chemical Industry: Carbon steel reactors are instrumental in synthesizing chemicals, polymers, and other industrial compounds. Their ability to withstand moderate corrosion and high temperatures makes them suitable for a range of chemical reactions, from basic synthesis to complex catalytic processes.

Pharmaceutical Industry: In the pharmaceutical sector, carbon steel reactors are used for the production of active pharmaceutical ingredients (APIs) and intermediates. The reactors' precise temperature and pressure control capabilities ensure the synthesis of high-quality, pure products, critical for meeting regulatory standards and patient safety.

Food Processing: In food processing, carbon steel reactors are employed for tasks such as cooking, sterilization, and blending. Their durability and cost-effectiveness make them ideal for large-scale production lines, where efficiency and hygiene are paramount. The reactors' design accommodates easy cleaning and sanitation, ensuring compliance with food safety regulations.



As technological advancements continue to reshape industrial processes, carbon steel reactors are evolving to meet emerging needs and challenges. Innovations in material science, automation, and process optimization are driving the development of new reactor designs and features, enhancing performance and sustainability.



Advanced Materials: Research into corrosion-resistant alloys and coatings is expanding the applicability of carbon steel reactors in harsher environments. These materials offer improved durability and longevity, reducing maintenance costs and enhancing overall reactor performance.

Automation and Digitalization: The integration of automation and digital technologies is transforming reactor operation. Advanced control systems, real-time analytics, and predictive maintenance tools are enabling more efficient, safe, and sustainable production processes. These innovations are critical for meeting increasing demand while minimizing environmental impact.

Sustainable Practices: Efforts to reduce energy consumption, waste generation, and emissions are driving the development of more eco-friendly reactor designs. Techniques such as heat recovery, waste minimization, and the use of renewable energy sources are becoming more prevalent, contributing to a more sustainable industrial landscape.



In conclusion, the carbon steel reactor remains a cornerstone of various industrial sectors, renowned for its cost-effectiveness, versatility, and robust design. As technological advancements continue to shape the future of industrial processes, carbon steel reactors will undoubtedly evolve, embracing innovations to meet emerging challenges and opportunities. Their role in driving efficiency, safety, and sustainability will continue to be pivotal, ensuring their ongoing relevance and impact in the global industrial landscape.
