Double effect evaporation system

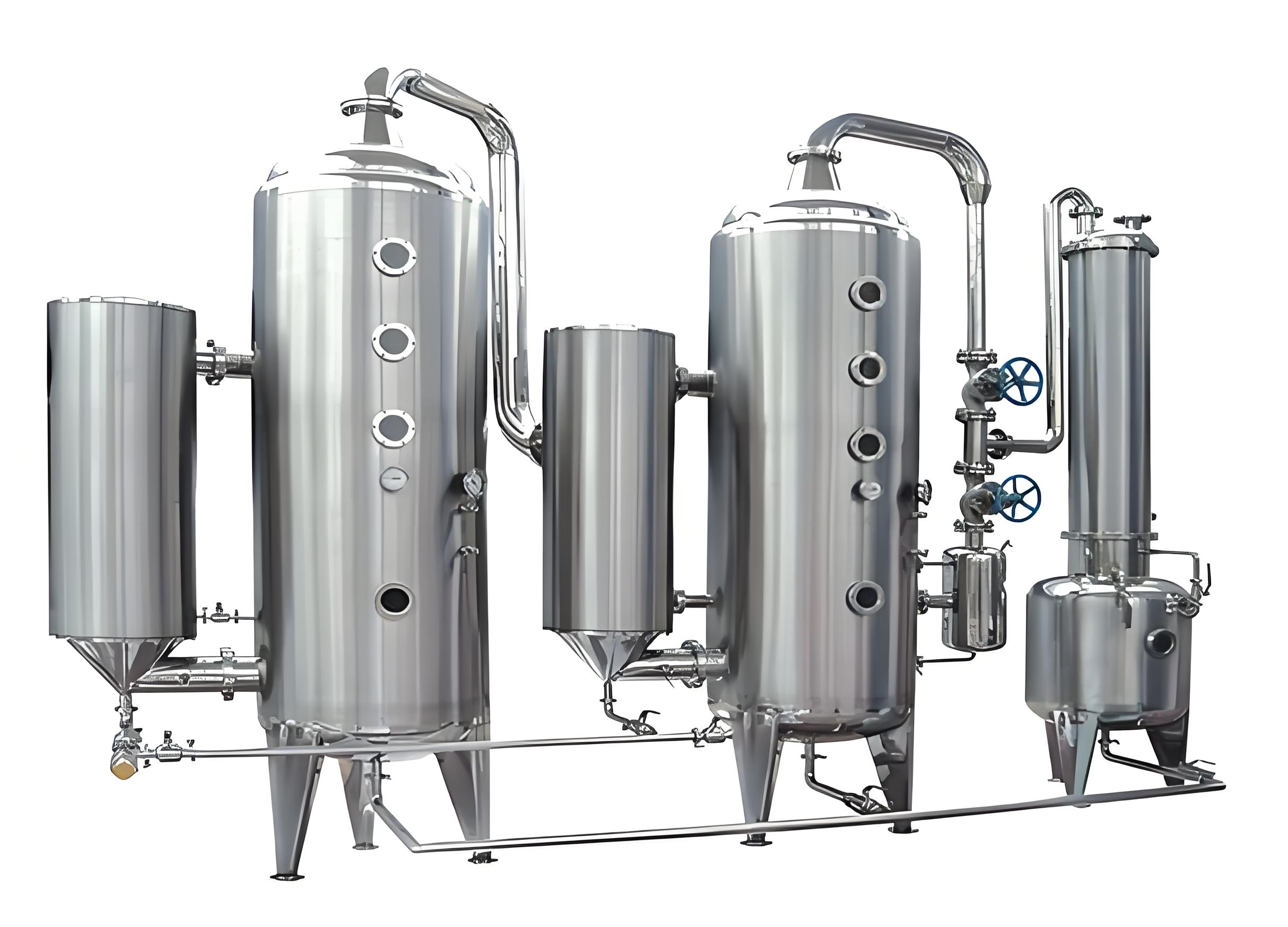

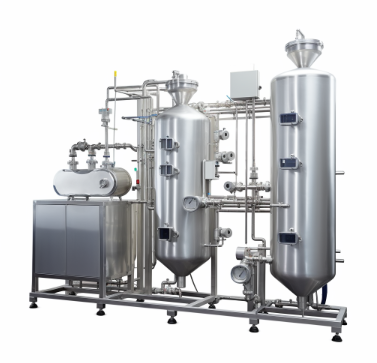

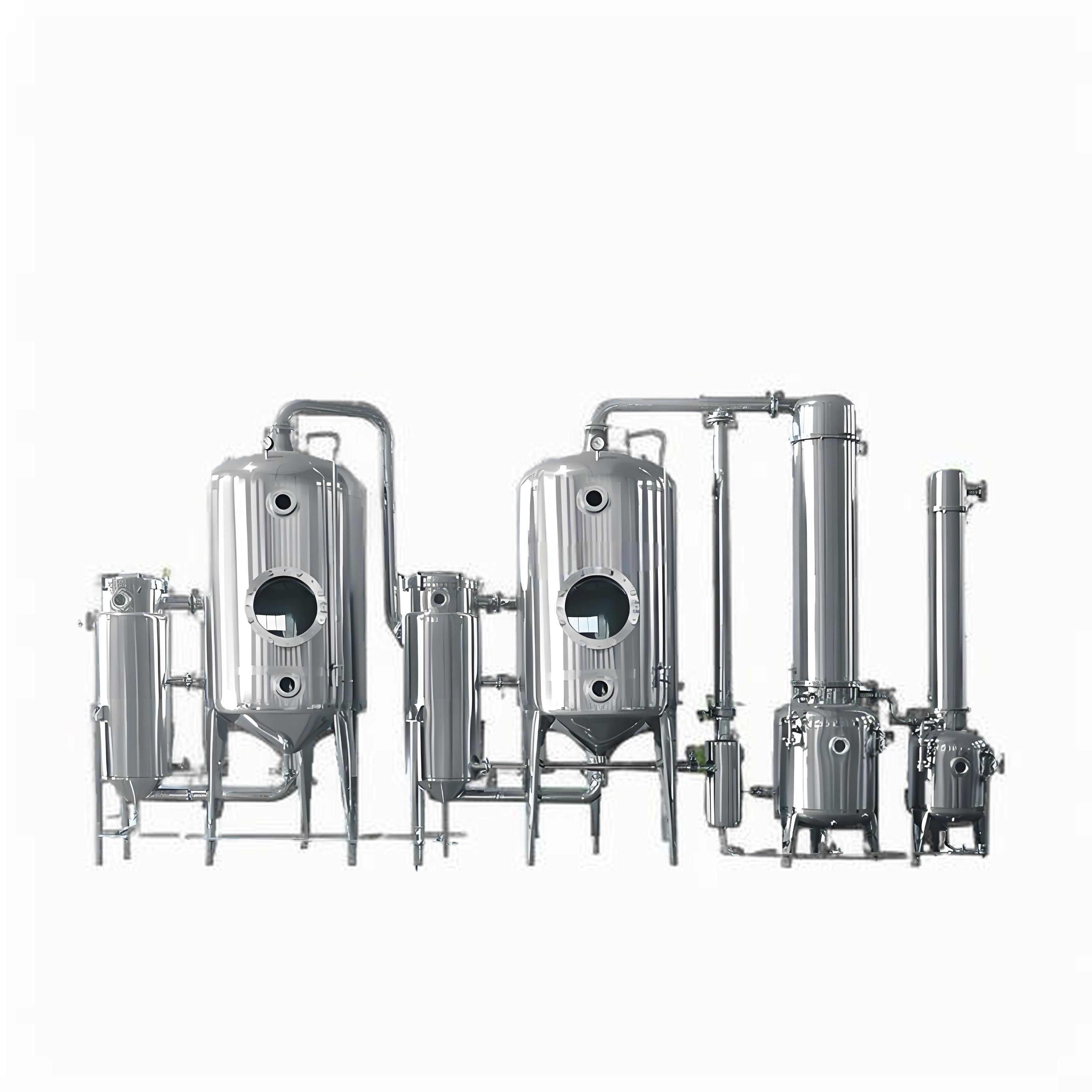

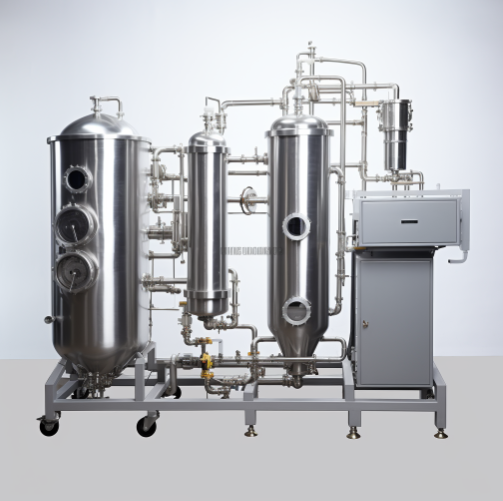

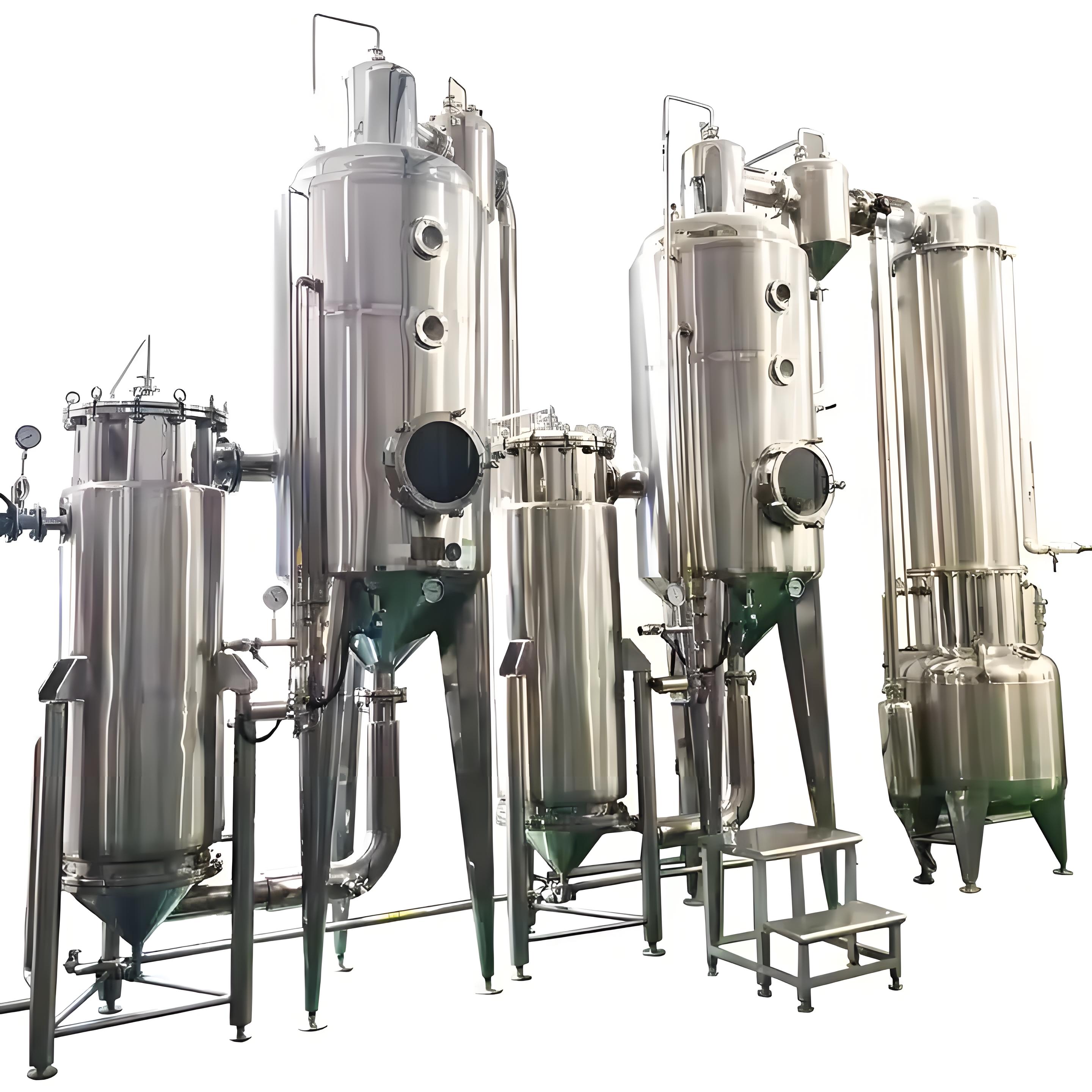

In the ever-evolving landscape of industrial processing, energy efficiency has become a paramount concern for businesses seeking to reduce costs and minimize their environmental footprint. Among the various technological advancements, the double-effect evaporator stands out as a game-changer in the field of evaporation. This innovative equipment leverages a two-stage evaporation process to enhance energy utilization, marking a significant improvement over traditional single-effect systems. By connecting two evaporators in series, the double-effect evaporator maximizes the potential of steam heat, leading to substantial energy savings and heightened evaporation efficiency. Its applications span diverse industries, including chemicals, pharmaceuticals, food processing, and environmental protection, particularly in scenarios demanding large-scale evaporation with high energy utilization efficiency.

The core of the double-effect evaporation system lies in its meticulous division of steam heat energy into two stages, each heating a separate evaporator. The operational workflow begins in the first evaporator, where hot steam serves as the heating source, causing the solvent (primarily water) in the solution to evaporate. This initial evaporation produces low-pressure steam, which, rather than being wasted, is directed to the second evaporator. Here, it functions as the heat source for the second stage of heating, continuing the evaporation process. In the first evaporator, the solution undergoes concentration as a result of solvent removal. Meanwhile, the second evaporator capitalizes on the low-pressure steam from the first stage, further evaporating the solution and condensing the resulting steam into liquid form, typically through a condenser. Throughout this process, the solution progressively concentrates, ultimately discharging the highly concentrated liquid from the system. This meticulous orchestration of heat transfer not only boosts evaporation efficiency but also ensures optimal energy utilization.

The effectiveness of the double-effect evaporation system hinges on its meticulously designed components, each playing a crucial role in the overall process. The first evaporator serves as the initial heating station, utilizing an external heat source—primarily steam—to evoke solvent evaporation and produce steam. This steam then transitions to the second evaporator, where it assumes the mantle of heat source, driving further evaporation. The condenser, another pivotal component, facilitates the condensation of steam generated in the second evaporator, cooling it down and collecting it as liquid. The concentrate discharge port ensures the smooth expulsion of the concentrated solution post-evaporation, while the steam distribution system strategically allocates hot steam across different evaporators, ensuring thorough heat utilization. These components, working in harmony, underpin the double-effect evaporator's ability to enhance energy efficiency and reduce operational costs.

The adoption of double-effect evaporation systems marks a leap forward in terms of energy efficiency, cost savings, adaptability, and environmental friendliness. By employing steam heat in two evaporators, these systems significantly elevate energy efficiency, slashing steam consumption compared to single-effect counterparts. This reduction in steam usage translates into lower operational costs, particularly beneficial in large-scale evaporation applications. The double-effect evaporator's adaptability shines through its capacity to accommodate diverse solutions, particularly high-flow or high-concentration varieties. Environmentally, its decreased energy consumption contributes to lower greenhouse gas emissions, aligning with sustainable practices. Furthermore, its enhanced evaporation efficiency ensures higher processing capacity and swifter solvent removal, outperforming single-effect evaporation in both speed and efficacy.

The versatility and efficiency of double-effect evaporators are evident in their wide-ranging applications across multiple industries. In the chemical sector, they facilitate the concentration of various chemicals, optimizing production processes and minimizing waste. The food industry leverages double-effect evaporators for syrup and juice concentration, enhancing product quality and extending shelf life. Pharmaceutical manufacturing benefits from their use in processing active ingredients, ensuring purity and potency. Environmental protection initiatives also embrace double-effect evaporators for treating wastewater and recovering valuable resources. Case studies have demonstrated their ability to reduce energy consumption by up to 50%, significantly impacting operational budgets and carbon footprints. These real-world applications underscore the double-effect evaporator's transformative potential, reshaping industrial evaporation processes for the better.

As industries continue to strive for greater energy efficiency and sustainability, the evolution of evaporation technology shows no signs of slowing down. The triple-effect evaporation system, an advanced variant, further amplifies energy utilization by incorporating three evaporators in series. This setup transfers steam heat across multiple stages, pushing the boundaries of thermal energy efficiency. Applications in salt production, syrup concentration, and juice processing benefit immensely from this refined technology, offering unparalleled evaporation capacity and cost savings. As research and development advance, the potential for even more efficient multi-effect evaporation systems emerges, promising a future where industrial processes are not only more productive but also significantly more environmentally conscious. The double-effect evaporator, with its proven track record, serves as the foundation upon which this exciting future is being built.



In conclusion, the double-effect evaporator represents a milestone in industrial evaporation technology, redefining energy efficiency and cost-effectiveness. Its innovative two-stage process, coupled with a robust array of components, ensures maximum heat utilization and minimal waste. Real-world applications across diverse industries demonstrate its transformative impact, while ongoing advancements pave the way for even more efficient systems. As industries continue their journey towards sustainability, the double-effect evaporator stands as a testament to the power of innovation in driving positive change.
