Stainless steel mixing tanks are used to stir, mix, blend and homogenize materials. The design structure and configuration of stainless steel mixing tanks can be standardized and humanized according to the requirements of the production process.
Introduction to High-Quality Mixing Tanks
In the vast landscape of industrial processing equipment, stainless steel mixing tanks stand out for their durability, versatility, and precision. These tanks are indispensable in various industries, including pharmaceuticals, chemicals, food and beverages, cosmetics, and more. Their design and configuration can be tailored to meet the specific requirements of different production processes, ensuring efficient mixing, blending, and homogenization of materials. Today, we delve into the intricacies of high-quality stainless steel mixing tanks, highlighting their structural composition, performance characteristics, and the range of accessories that make them indispensable assets in modern manufacturing.
Structural Composition and Design Features
At the heart of every high-quality mixing tank lies a robust structural composition designed for maximum efficiency and ease of use. The tanks typically feature upper and lower heads, with options such as flat heads, cone heads, and upper heads equipped with stirring systems. The cylinder, constructed from high-grade stainless steel like S30408 or S31603, ensures corrosion resistance and longevity. Heating systems, including jackets, inner coils, and electric heating elements, allow for precise temperature control during mixing processes.
Support structures, such as legs, ears, or saddles, stabilize the tank and facilitate installation. The stirring system, comprising a motor, reducer, frame, mechanical seal, coupling, and various paddle types (frame, anchor, paddle, turbine, etc.), ensures thorough mixing. The internal and external surfaces of the tank are polished to a Ra≤0.4μm finish, minimizing the risk of contamination and facilitating easy cleaning.
Accessories play a crucial role in enhancing the functionality of mixing tanks. Sanitary manholes provide access for maintenance and inspection, while sight glasses and lights allow operators to monitor the mixing process visually. Air
Filter respirators protect the internal environment from contaminants, and CIP (Clean-In-Place) cleaning nozzles facilitate efficient hygiene practices. Liquid inlet and outlet nozzles, along with other process nozzles, ensure seamless integration into production lines. Optional accessories, such as level meters, thermometers, cleaning balls, respirators, weighing modules, pressure gauges, and safety valves, further customize the tank to suit specific process needs.
Performance Characteristics: Precision and Efficiency
The performance characteristics of high-quality mixing tanks are designed to meet the most demanding industrial standards. The tank body features an inner surface mirror polished to a roughness of Ra＜0.4μm, minimizing the risk of material adherence and facilitating easy cleaning. The upper cover, which is openable and movable, is also mirror polished both internally and externally for ease of maintenance and hygiene.
The inner inclined bottom of the tank, angled at 5°, ensures complete discharge of materials without retention, preventing waste and ensuring efficient process flow. The outer shell can undergo mirror polishing or a 2B primary color matte or frosted matte treatment, enhancing aesthetics and durability.

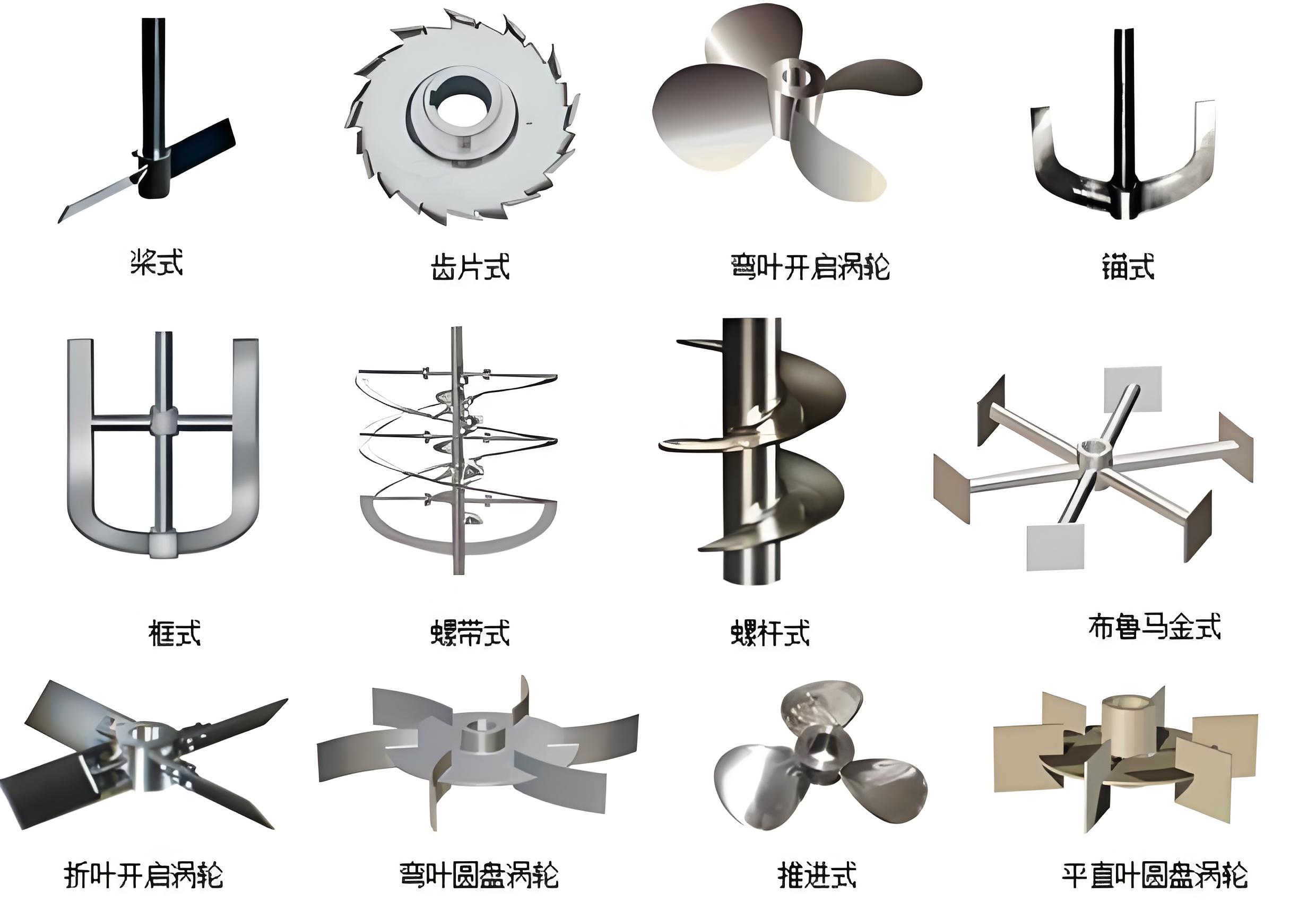

The stirring device, positioned at the top center, features a reducer output shaft connected to the stirring paddle shaft via a slip-on sleeve, facilitating easy disassembly and cleaning. Stirring speeds range from 10 to 120 revolutions per minute (rpm), with options for fixed speed or variable frequency speed regulation. Various paddle types, including frame, anchor, paddle, and turbine, cater to different mixing requirements and material properties.
Temperature control is achieved through electric thermocouples connected to a temperature controller, allowing for precise measurement and adjustment of material temperatures. The temperature transmission rod is inserted directly into the tank bottom, ensuring accurate temperature indication even when the liquid level is low.
Design and Manufacturing Standards: Ensuring Compliance
In industries where regulatory compliance is paramount, such as pharmaceuticals, the design and manufacturing of mixing tanks must adhere to stringent standards. High-quality mixing tanks can be produced in accordance with various international and national regulations, including:
SFDA "Good Manufacturing Practice for Pharmaceuticals" 2010 Edition - Ensures that the tanks meet the hygiene and quality standards required for pharmaceutical production.
"Design Specifications for Clean Plants in Pharmaceutical Industry" (GB50457-2008) - Provides guidelines for the design of cleanrooms and associated equipment, including mixing tanks.
GAMP Pharmaceutical Production Automation Management Specifications - Ensures that automation systems integrated into mixing tank operations comply with industry best practices.
GB150.1~150.4-2011 "Steel Pressure Vessels" - Outlines the design, fabrication, inspection, and testing requirements for steel pressure vessels, including mixing tanks.
NB/T47003.1-2009 "Steel Welded Atmospheric Pressure Vessels" - Specifies the technical requirements for the design, manufacture, inspection, and testing of steel welded atmospheric pressure vessels, ensuring the safety and reliability of mixing tanks.
Compliance with these standards ensures that mixing tanks meet the highest quality and safety benchmarks, facilitating efficient and compliant production processes.
Customization and Technical Support: Meeting Diverse Needs

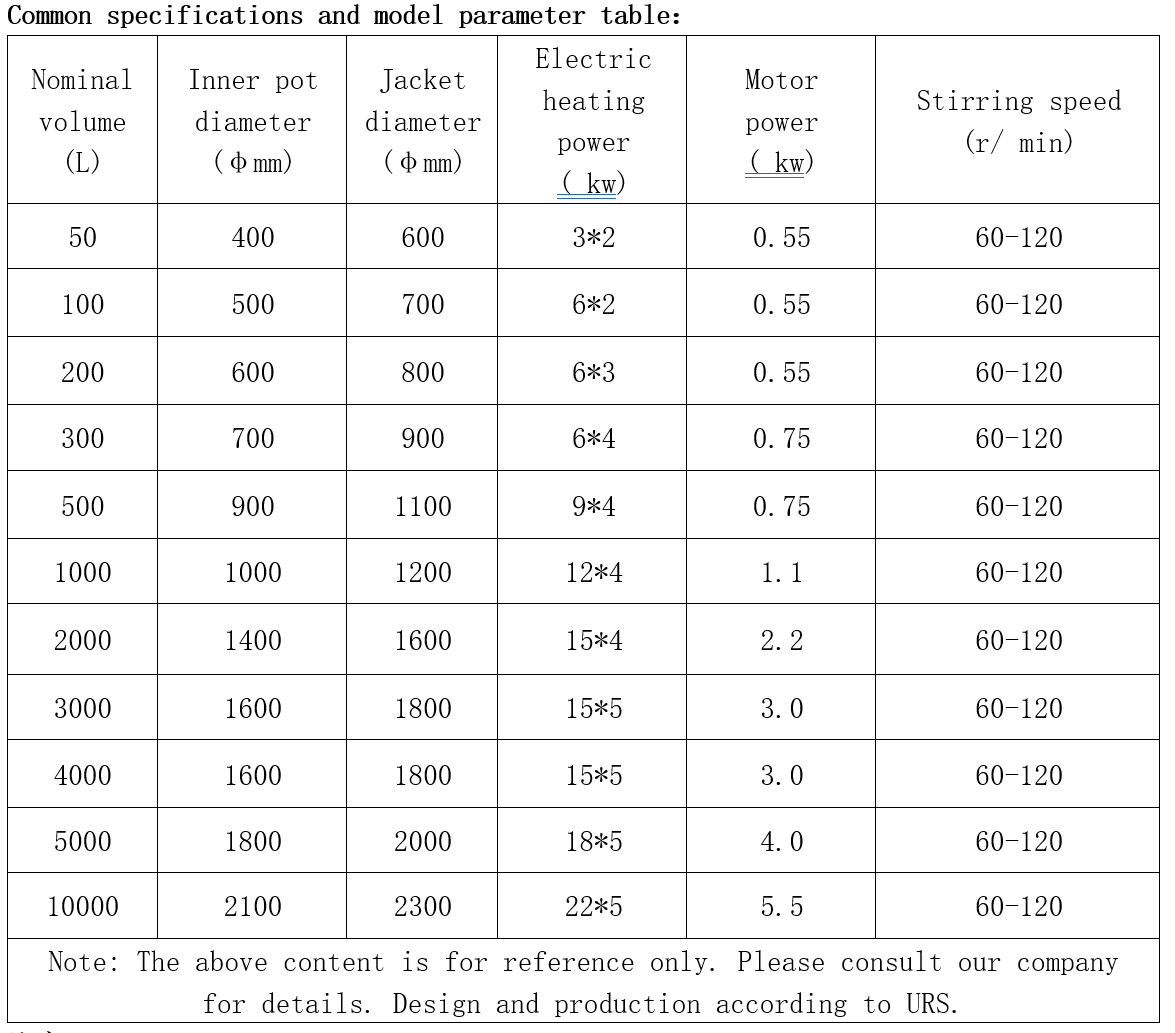

One of the key strengths of high-quality mixing tanks lies in their ability to be customized to meet diverse industrial needs. While standard tank volumes are available, manufacturers can produce additional volumes based on user requirements, ensuring that each tank is tailored to the specific process demands.
Technical support is another crucial aspect of high-quality mixing tank solutions. Manufacturers provide a comprehensive range of technical documents, including equipment drawings CAD, installation drawings, product quality certificates, installation and user manuals, and more. These documents facilitate smooth installation, operation, and maintenance of the tanks.
Moreover, manufacturers offer design, production, and inspection services that adhere to different user needs and industry standards. This flexibility ensures that mixing tanks meet the unique requirements of each application, from material properties and process conditions to regulatory compliance and safety protocols.
Conclusion: The Future of Industrial Mixing Solutions
High-quality stainless steel mixing tanks represent the pinnacle of industrial mixing solutions, combining robustness, versatility, and precision in a single package. Their structural composition, performance characteristics, and range of accessories cater to diverse industrial needs, ensuring efficient and compliant production processes.
As industries continue to evolve, the demand for high-quality mixing tanks will only grow. Manufacturers must remain at the forefront of innovation, continuously improving tank design, materials, and accessories to meet emerging challenges and opportunities. By adhering to stringent regulatory standards and offering customizable solutions, they can ensure that mixing tanks remain a cornerstone of efficient and sustainable industrial production.
In conclusion, high-quality stainless steel mixing tanks are indispensable assets in modern manufacturing, driving efficiency, precision, and compliance across diverse industries. With continuous advancements in design, materials, and technology, they promise to revolutionize industrial mixing solutions for years to come.
