In the rapidly evolving field of pharmaceutical and chemical engineering, the high-precision extraction tank stands out as a game-changer. This sophisticated equipment not only enhances extraction efficiency but also integrates advanced technologies in liquid storage, gas storage, transportation, installation, and sealing, pushing the boundaries of traditional extraction methods.
High-Precision Extraction Tank: The Heart of Modern Extraction
The extraction tank, also known as the Extraction tank, is a vital piece of equipment in the pharmaceutical, food, and beverage industries. It is specifically designed for the extraction of components from plant materials and animal by-products using a steaming method to achieve effective solid-liquid separation. The entire extraction process occurs within a closed, circulating system, ensuring high precision and efficiency.

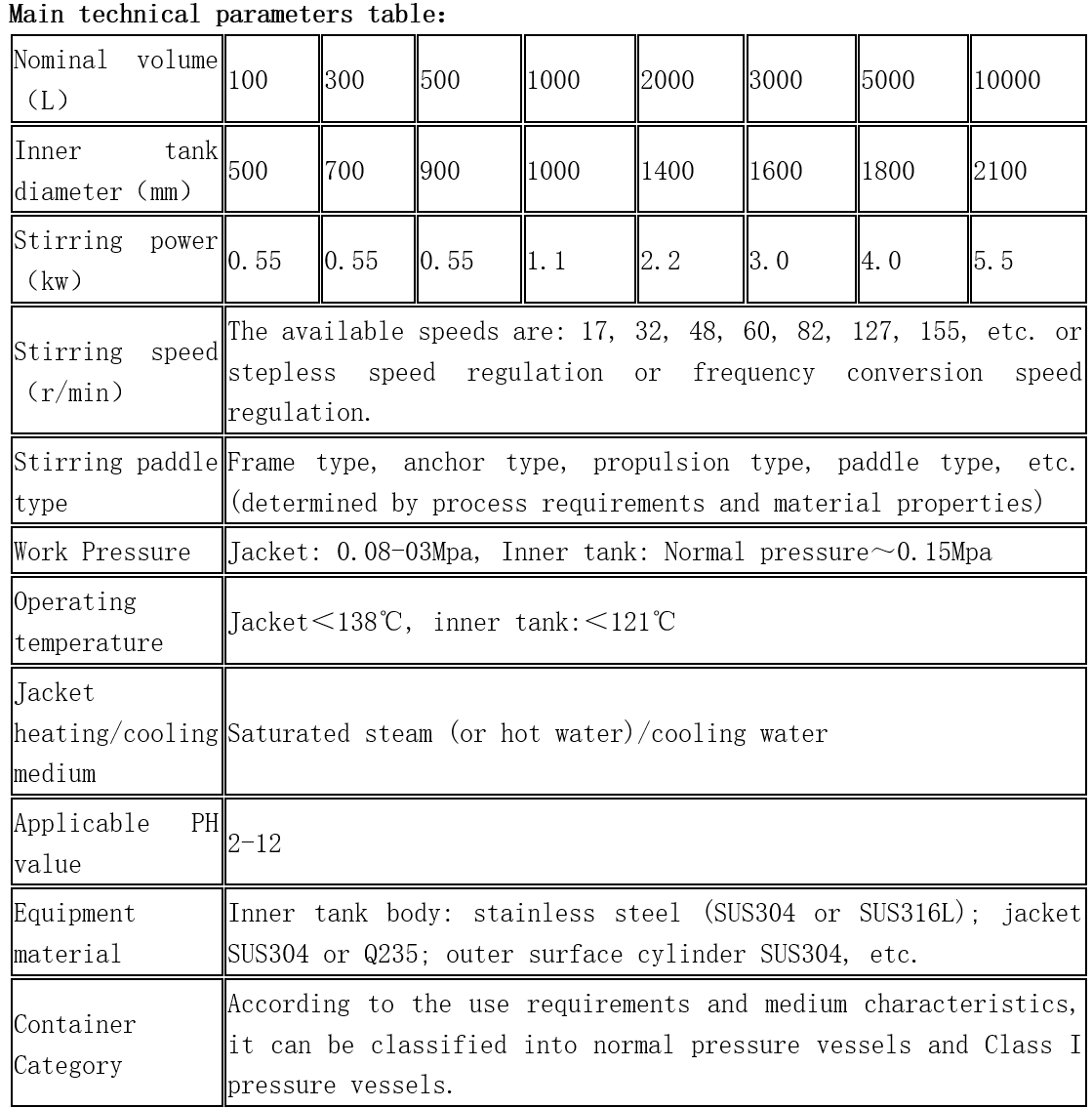

Technical Specifications and Structure
High-precision extraction tanks come with a range of technical specifications tailored to meet various industrial needs. For instance, an extraction tank may feature a stirring rate of 48 revolutions per minute, a cylindrical diameter of 1000mm, and a height of 2400mm. The tank's structure includes a spiral or paddle propeller axially positioned within the tank body, connected to an external rotating shaft. This design facilitates a continuous countercurrent extraction process, where each individual tank is interconnected through feed and discharge ports.
The equipment consists of several components: the extraction tank itself, a foam collector, a gas-liquid separator, a
water pump, a pipeline
Filter, and internal connecting pipelines. The discharge door, operated by two cylinders, ensures smooth opening and closing, with a direct steam inlet for enhanced functionality. The tank's material contact parts are made of
stainless steel 304/316L, ensuring excellent corrosion resistance and compliance with GMP standards.
Liquid Storage: The Future of Data and Chemical Storage
Liquid storage technology is not limited to traditional chemical storage; it is also poised to revolutionize data storage with the advent of liquid hard drives. Researchers from the University of Michigan and New York University have developed a technology that uses clusters of nanoparticles suspended in liquid for information storage. These clusters can store significantly more data than traditional hard drives.
Unlike binary storage systems that rely solely on "0" and "1" states, liquid storage works like a Rubik's Cube, utilizing different combinations to represent various storage states. A storage cluster composed of one central sphere and twelve surrounding particles can have nearly 8 million different states, equivalent to 2.86 bytes of data.
The system uses nanoparticles connected to a central sphere for data storage. When the central sphere expands due to heat, the particles rearrange predictably, allowing for different information to be stored. Experimental results show that a solution containing 3% of these 12-particle storage clusters in a tablespoon (about 14.8 milliliters) can store 1TB of data, compared to a smartphone-sized hard drive for the same amount of data using traditional methods.
While liquid hard drives are still in the research phase, their potential applications are vast. They could be used for detecting pollutants in water, processing medical information inside the human body, or replacing rigid chips in soft robots. In the nearer term, liquid hard drives could be incorporated into liquid materials as identification markers for tracking controlled liquids such as fuel, explosives, and chemicals used in illegal drug manufacturing.
Gas Storage: Efficient and Reliable Energy Solutions
Gas storage plays a crucial role in energy management, particularly in remote areas where operational staffing is minimal. High-pressure storage units can discharge gas at any desired pressure with minimal mechanical equipment. An example of such a unit is a cylinder storage system installed by the South Jersey Gas Company in 1964, featuring two rows of eight cylinders, each 1,080 feet long and 42 inches in diameter.
These cylinders have a wall thickness of 0.486 inches and a minimum yield strength of 60,000 psi. They are filled using a 600-horsepower compressor to compress gas to 980 psi, reaching a capacity of 10 million standard cubic feet in approximately three days. The equipment required for filling includes a dehydrator to reduce gas moisture content, a gas compressor, and internal and aftercoolers.
Pipeline storage is another method that increases gas capacity by raising operating pressure, increasing pipe diameter, adding parallel pipes, or combining these methods. This storage solution is particularly advantageous for managing daily demand fluctuations, although losses in the pipeline also mean storage losses.
The transportation and installation of high-precision extraction tanks require meticulous planning and execution. Transportation involves the use of specialized vehicles and equipment to ensure the tank arrives at the installation site in perfect condition. Careful loading, securing, and monitoring during transit are essential to prevent any damage.
Installation, on the other hand, demands precision and adherence to safety protocols. It typically involves positioning the tank, connecting it to the necessary pipelines and equipment, and ensuring all seals and connections are tight and secure. A well-executed installation ensures the tank operates efficiently and safely, maximizing its lifespan and performance.
Sealing Technology: The Unsung Hero of Fluid Handling
Sealing technology is a critical aspect of high-precision extraction tanks, as it prevents leaks and ensures the integrity of the system. Fluid sealing is not just a technical necessity but a decisive factor in determining the safety and reliability of machinery and equipment. It also plays a vital role in environmental protection, energy conservation, and improving economic benefits.
Sealing mechanisms in extraction tanks must withstand the rigorous conditions of the extraction process, including high temperatures, pressures, and corrosive media. Advanced sealing technologies, such as mechanical seals, lip seals, and O-rings, are employed to ensure a tight seal between moving parts and stationary components. Regular maintenance and inspections are crucial to detect and repair any wear or damage before they lead to leaks.
Challenges and Innovations in the Field
The field of high-precision extraction tanks is constantly evolving, driven by technological advancements and industry demands. Challenges such as improving extraction efficiency, reducing energy consumption, and enhancing the durability of sealing mechanisms are driving innovations.
One such innovation is the development of multi-functional extraction tanks that can handle various extraction processes, including water extraction, alcohol extraction, volatile oil extraction, and solvent recovery. These tanks offer versatility and efficiency, making them ideal for a wide range of applications in the pharmaceutical, food, and chemical industries.
Another area of innovation is the integration of automation and control systems that monitor and optimize the extraction process in real-time. These systems improve precision, reduce human error, and enhance overall productivity.
Conclusion
The high-precision extraction tank is a cornerstone of modern pharmaceutical and chemical engineering. By integrating advanced technologies in liquid storage, gas storage, transportation, installation, and sealing, it is pushing the boundaries of traditional extraction methods. As the industry continues to evolve, so will the extraction tank, adapting to new challenges and opportunities with innovative solutions.
The future of high-precision extraction tanks is bright, with endless possibilities for improvement and innovation. With the right mix of technology, expertise, and vision, the extraction tank will continue to play a pivotal role in shaping the future of the pharmaceutical, food, and chemical industries.
