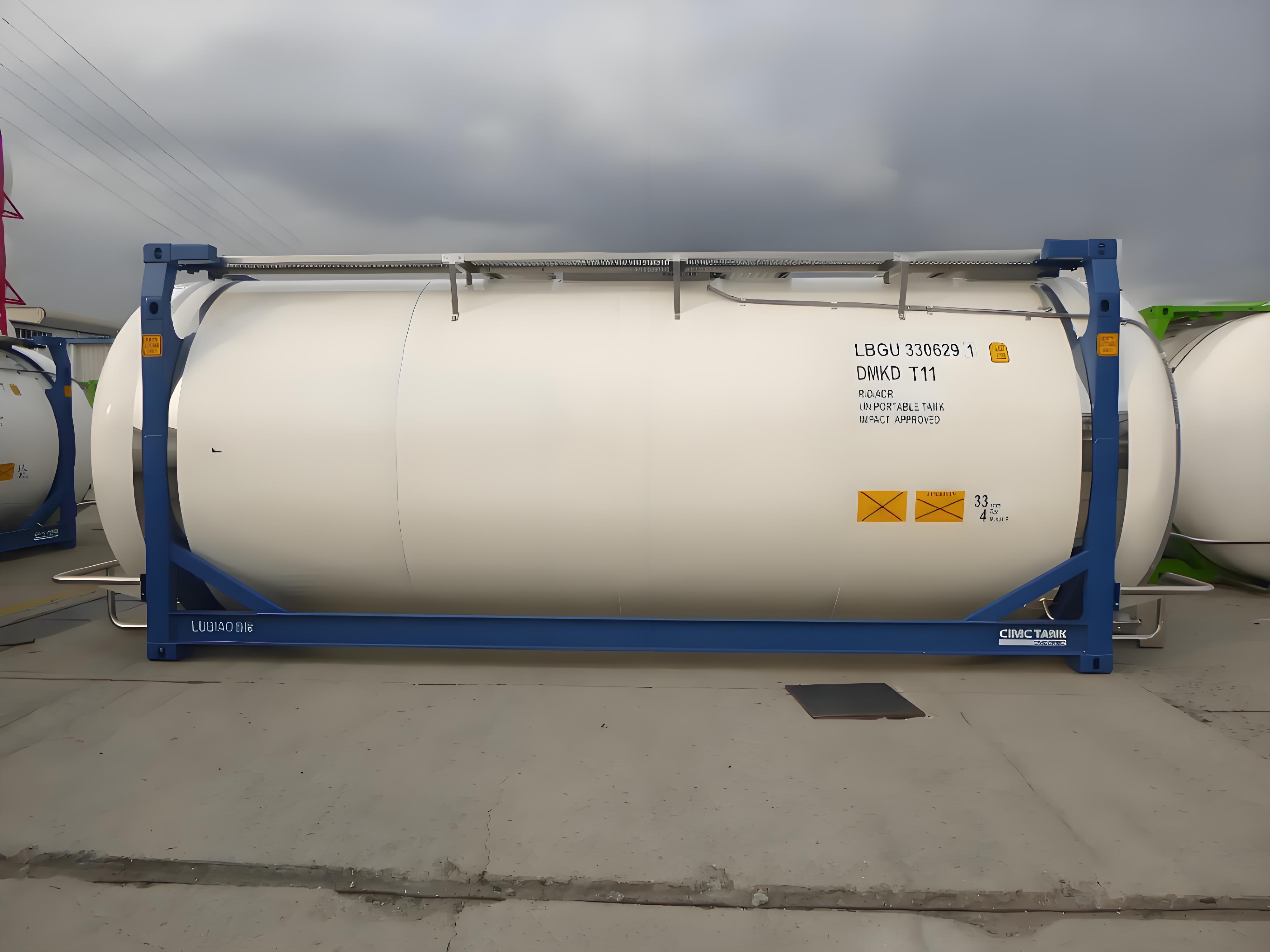

Cryogenic liquid tank
container is specially designed for the safe storage and transportation of liquid gases, such as liquid nitrogen, liquid oxygen, etc. They are able to maintain the liquid state of the
gas at extremely low temperatures, ensuring its stability and safety during use.
Product Details:
Box specifications: 10 feet, 20 feet, 30 feet
Nominal volume: 5m³-30m³
Working pressure: 0.9MPa-2.2MPa
Design standards: GB, ASME, EN and other standards
Insulation method: high vacuum multi-layer winding insulation, stacking insulation, etc.
Loading medium: LO2, LN2, LAr, LCO2, LN2O, LC2H4
Design and Construction

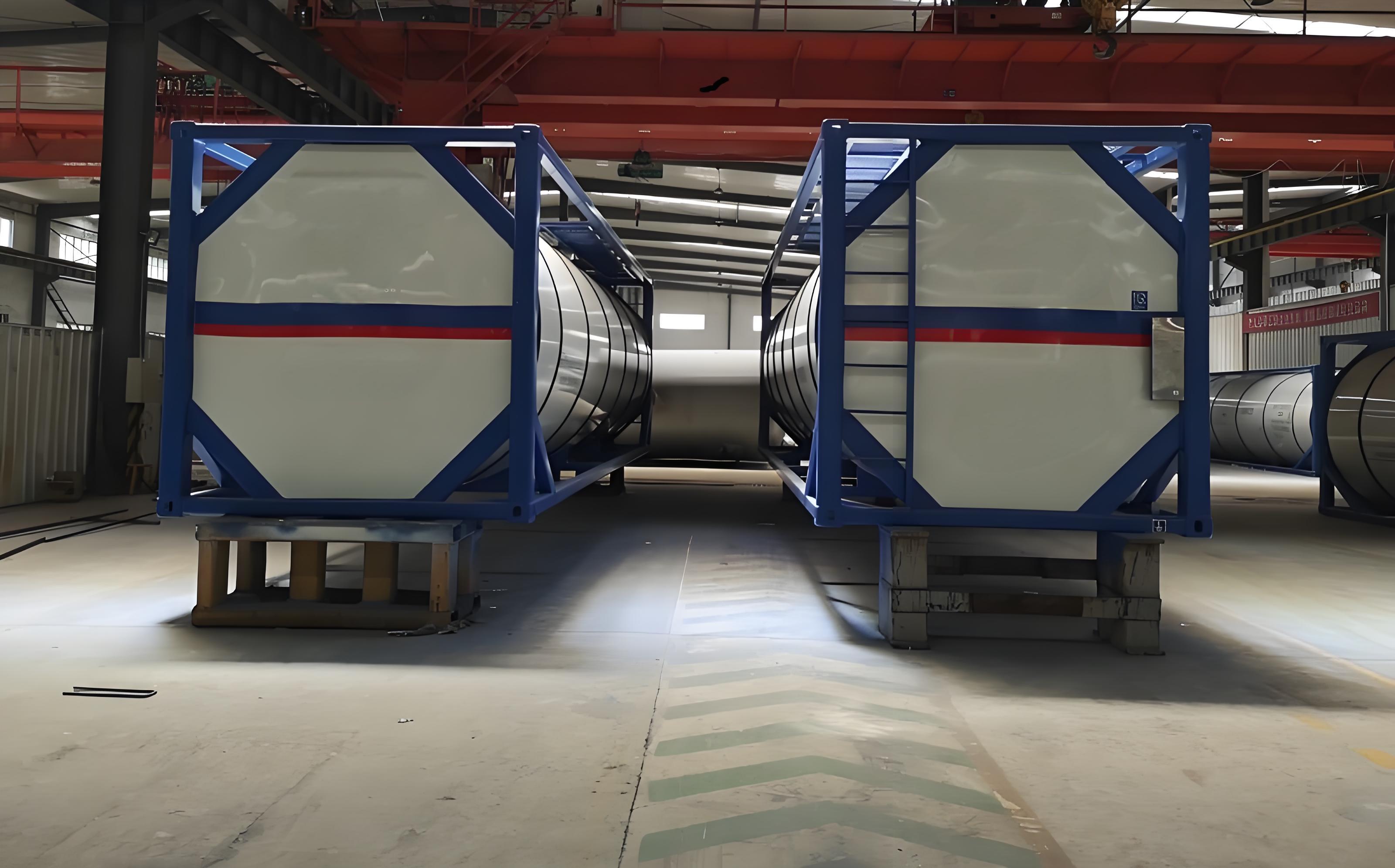

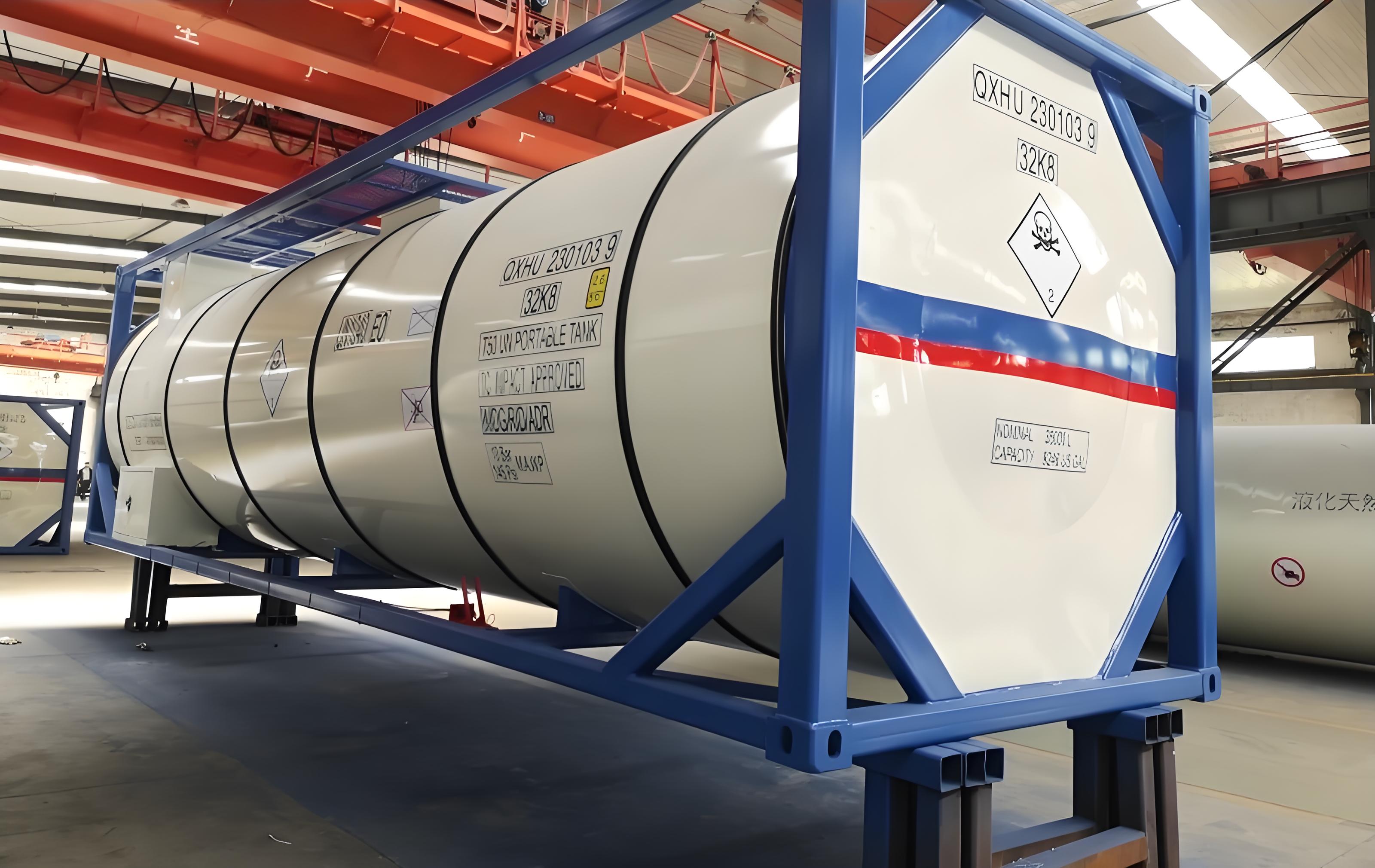

The tank container is built according to ISO standards, making it suitable for different modes of transportation, including maritime, road, and rail. The tank shell is constructed from high-strength, low-alloy steel specifically designed for cryogenic applications, ensuring it can withstand the extreme pressures and temperatures associated with these liquids. The insulation layer is composed of multi-layer super vacuum thermal insulation, providing excellent thermal efficiency and reducing heat leakage.
The tank container is also equipped with a variety of valves and instrumentation to monitor and control its operations safely. These include pressure-building valves, liquid inlet valves, liquid discharge valves, pressure-building adjustable valves, three-way valves, gas passing valves, air-return valves, vent valves, residual discharge valves, safety valves, and liquid level indication differential pressure gauges. These valves and instruments are strategically placed to ensure the tank's safe and efficient operation.
1. CCS, BV, LR and other certifications have been passed, and other international classification society certifications can be obtained according to user needs to meet international shipping requirements. The product complies with IMDG, ADR, RID, CSC, TC, UIC, ISO1496/3, US.DOT, TSG and other specifications. Suitable for road,
water and rail transport containers worldwide.
2. The working pressure and volume of the product can be designed according to user needs.
3. All tank containers reduce the dead weight of the tank container and increase the volume of the tank container under the premise of ensuring the safety of the tank container.
4. The advanced composite insulation method and mature and reliable vacuuming process are adopted to ensure that the tank body has excellent insulation performance and low daily evaporation rate.
5. The operation pipeline design can meet the use requirements of different situations, and the tank container has a complete active safety and passive safety design;
6. A composite transmitter integrating temperature, pressure, liquid level and GPS can be installed to monitor the liquid status in the tank in real time;
7. A variety of frame forms can be selected.
8. The operating pipeline can be arranged on the side or end according to customer needs;
9. Various brands of valves are available for selection; cryogenic pumps are optional.
